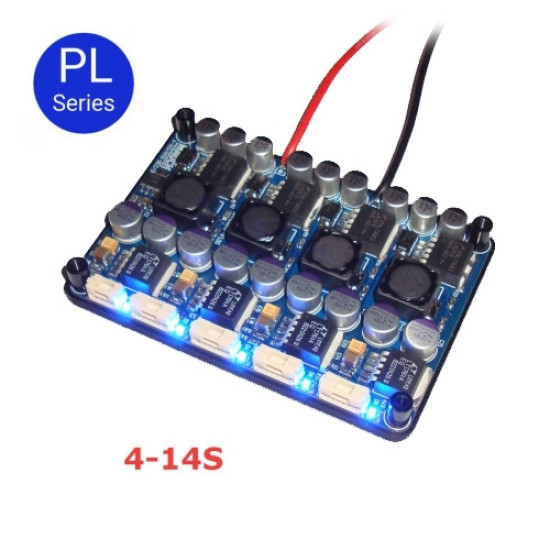

Mauch Premium line PL 4-14S HYB-BEC / 2x5.3V / 1x5.0V / 1x12.0V

Mauch Premium line PL 4-14S HYB-BEC / 2x5.3V / 1x5.0V / 1x12.0V
Mauch Premium line PL 4-14S HYB-BEC / 2x5.3V / 1x5.0V / 1x12.0V
Input 4-14S LiPo / max. 60V. Output 2x 5.30V / 1x 5.0V / 1x 12.0V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current. Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p. Blue power "ON" LED. 59mm x 87mm x 13mm / 72g with enclosure(without cables) Delivery in PP box: Scope of delivery: 1x 021: PL 4-14S HYB-BEC / 1x 5.3V / 3A 1x 040: PL - Series sensor cable / L=150mm 1x 050: Backup cable for Pixhawk 2.1 / L=150mm 1x 5.0V output cable (red/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm 1x 12.0V output cable (white/black) one site Molex Clik-Mate 1.25mm-4p, the other site open. / L = 150mm 1x Enclosure REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC: 041: DF13-6p -> Pixhawk 1 / APM... etc. 042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1 043: JST-GH-6p -> Pixhawk 3... etc

Write a review

Note: HTML is not translated!
Bad Good
Captcha
229.90€
Ex Tax: 188.44€
  • Stock: In Stock
  • Model: MAU2-025
Tags: Mauch , Premium , line , PL , 4-14S , HYB-BEC , / , 2x5.3V , / , 1x5.0V , / , 1x12.0V
