PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
Menu
Your Cart

PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP

PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
Out of stock
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP
PicoPatch Antenna 5.8Ghz Polarised Receiver Patch - RHCP

Item can be returned in its original condition for a full refund within 30 days of receipt

This product has been verified to be delivered safely in its original packaging, box or bag, reducing unnecessary packaging. For purchases over EUR 50, we offer the option of FREE delivery to your home!

16.90€
Ex Tax: 13.85€
  • Stock: Out of stock
  • Model: PICOPATCH-RHCP
0 sold
43 views

The PICOpatch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarised omni style transmitter antenna.

Features
Highest Sensitivity for increased range

Ergonomic design to fit diversity modules on goggles

Can stay on your goggles in the carry case.
5.8ghz Frequency Bands Compatible

Circular Polarized for left or right hand
Designed for goggles or base stations.

Great for diversity setups.



Specification
Frequency Range: 5645 – 5945 Mhz

Gain: 9.4 dBi

Beam Width: 61° at -3db points

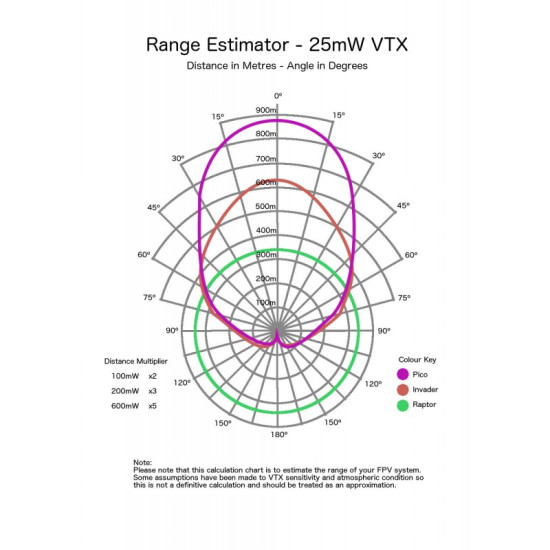

(Check polar plot comparison invader actual angular db)

Left or Right Hand Circular Polarised (LHCP or RHCP)

SMA Connector (Fits Fatshark Goggles)

Dimensions: 37.0mm x 33.6mm x 19.2mm

Weight: 10 grams



Real World
25mW Range tested to 1.33km

60% increase in range over a 5db patch

20% increase in range over a 8db patch

38% increase range over the Invader patch
Reduced multipath propagation compared to 360 degree omni style receiving antenna
