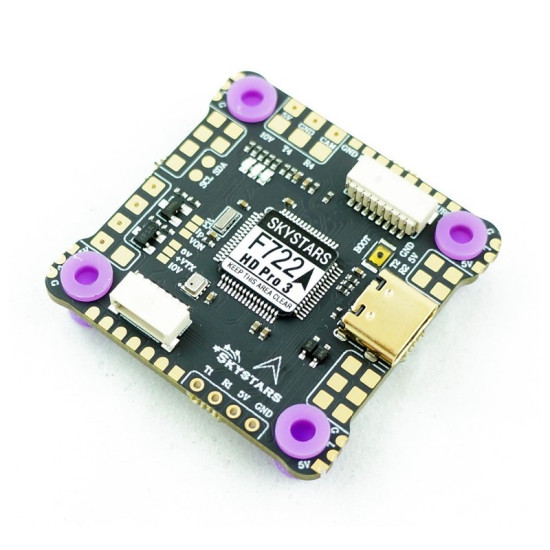

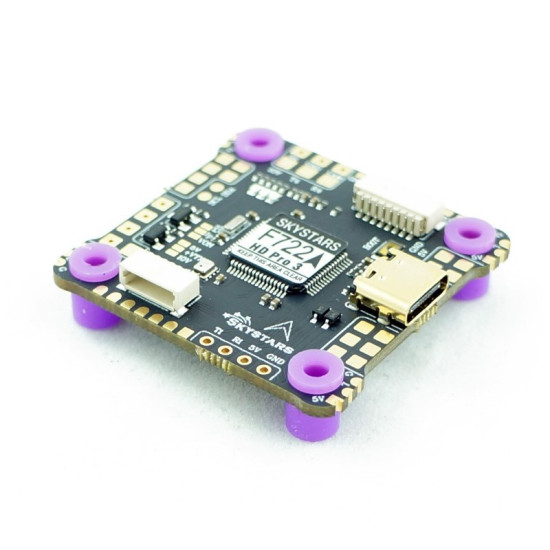

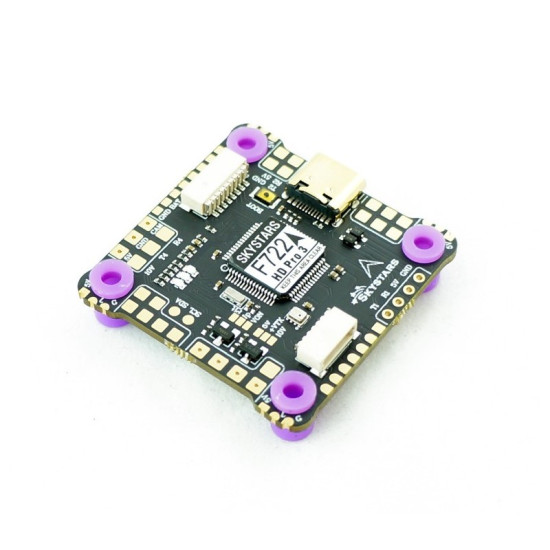

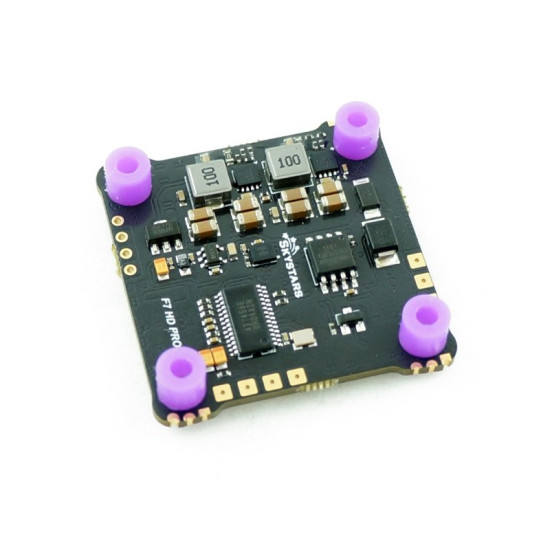

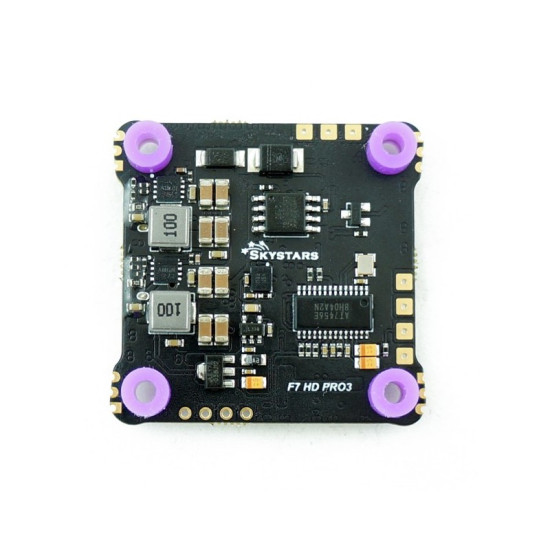

F722 HD Pro3 30x30 Flight Controller - Skystars
The Skystars F722 HD Pro3, DJI FPV compatible, has a BMI270 gyroscope, an 8MB blackbox and a 5V/3A & 10V/3A BEC.
FC Specifications
- MCU: STM32F722RGT6 216MHz
- Gyroscope: BMI270
- Baro:Bmp280
- OSD: Betaflight SPI OSD DJI HD OSD(UART6)
- Black box: 16MB
- 6x Uarts: UART 1/2/3/4/5/6
- 4x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
- VTX 10V/Vbat filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
- LED: 4 LED independent pads, support WS2812 programming lamp output.
- Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
- Input voltage: 3-6S
- BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
- LDO 3.3V: Max.250mA
- BetaFlight firmware: SKYSTARSF722Pro
- INAV firmware:SKYSTARSF722HD
- Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
- External size 39mm × 39mm
- Flight control weight: 6.9g
- Flight control onboard voltage sensor.
Included
- 1x F722 HD Pro3 FC
- 4x Dampers
- 1x JST SH1.0mm Cable for Air Unit
- 2x JST SH1.0 cable for ESC
