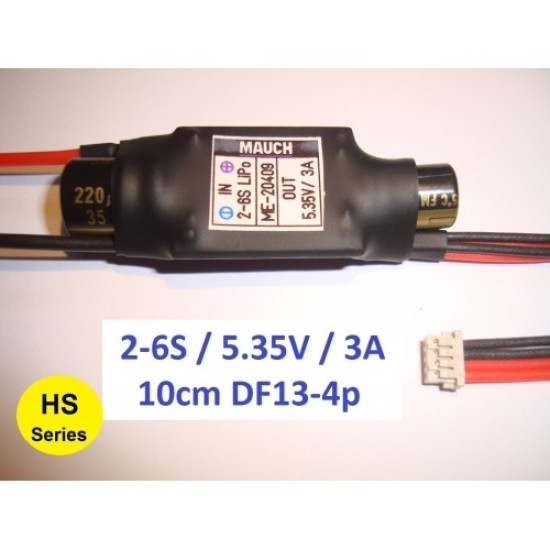

Mauch Standard Line 2-6S BEC / 5.35V / DF-13-4P
Input 2-6S LiPo / max. 28V.
Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.
Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes.
20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2)
2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sence.
47mm x 18mm x 11mm / 9g with cables and shrinking tube.
Ex Tax: 22.05€
- Stock: In Stock
- Model: MAU2-082
