F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV

F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
F4 2-3S 20A ELRS 2.4G AIO V1 By BetaFPV
5.66€
Ex Tax: 5.66€
  • Stock: In Stock in 3 days
  • Model: 01040015_1
3137 views
Tags: f4 , 2-3s , 20a , elrs , 2.4g , aio , v1 , by , betafpv

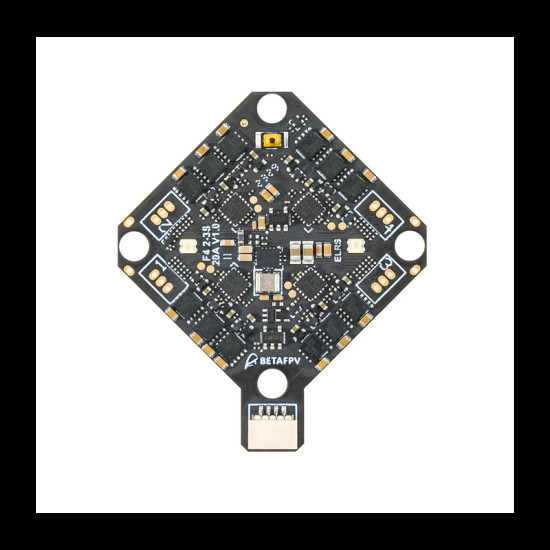

This AIO F4 2-3S 20A V1 from BetaFPV is specially designed for VTX HD.

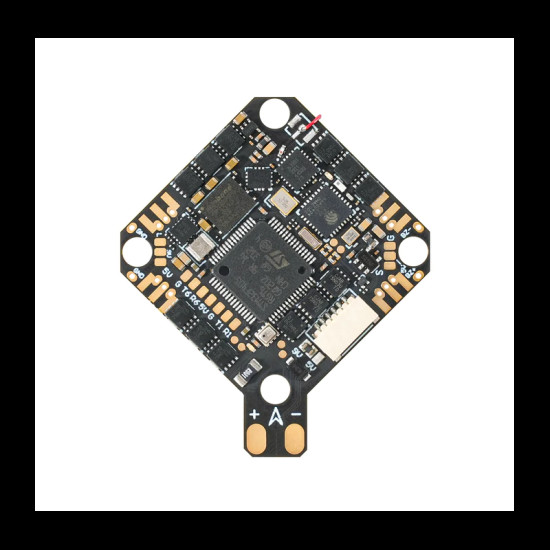

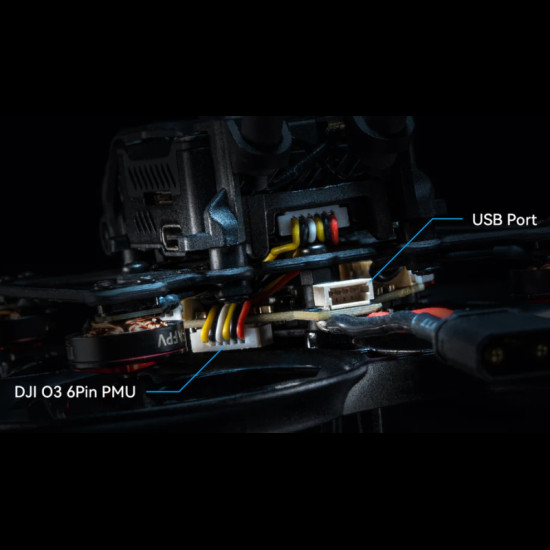

This powerful controller integrates an STM32F405RGT6 MCU and dual BEC 9V 12A for DJI O3 and 5V 3A for external devices.

It is equipped with an integrated ExpressLRS 2.4G receiver, a 16MB blackbox and a barometer.

Specifications

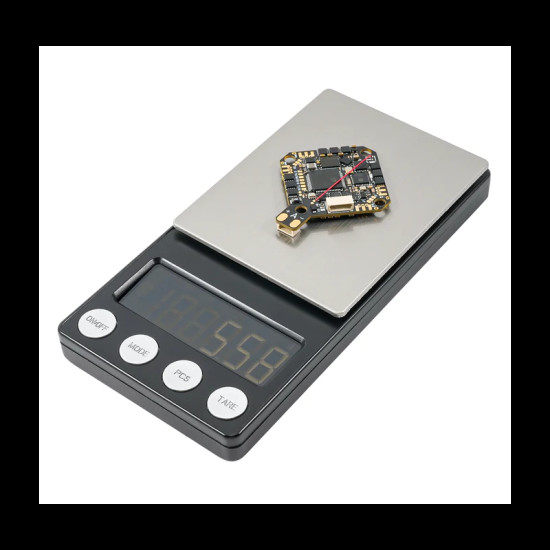

  • Weight: 5.58g (without motor connectors and power cable),5.92g (with motor connectors)
  • Mounting Hole Size: 26mm x 26mm
  • CPU*: STM32F405RGT6 (168MHz)
  • Six-Axis: ICM42688P (SPI connection)
  • RX: Serial ELRS 2.4G Receiver
  • RX firmware version: BETAFPV AIO 2400 RX ELRS V2.5.2
  • Antenna: Enameled wire
  • Blackbox Memory: 16MB
  • Sensor: Barometer(BMP280),  Voltage&Current
  • 5V BEC*: 5V 3A@8V supply
  • 9V BEC*: 9V 2A@8V supply
  • USB Port: SH1.0 4-Pin
  • Built-in ESC with 20A continuous and peak 25A current
  • ESC input voltage: 2-3S
  • FC firmfware version: Betaflight_4.4.1_BETAFPVF405
  • ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
  • Signal support: D-shot300, D-shot600

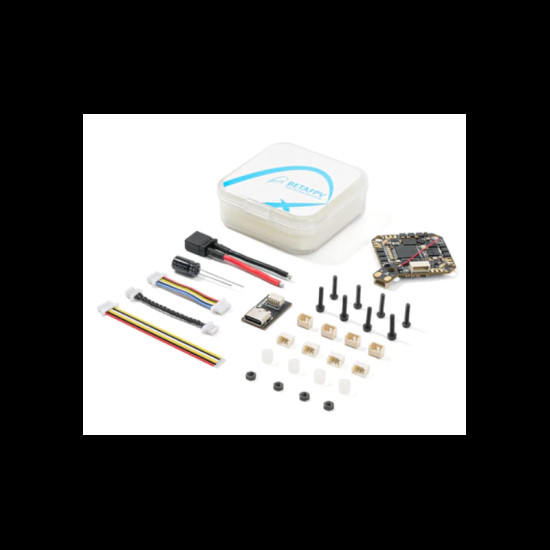

Included

  • 1x F4 2-3S 20A AIO FC V1
  • 4x M2*10 machine screw
  • 4x M2*10 nylon screw
  • 4x M2 nuts
  • 4x Shock absorbing ball
  • 4x JST1.25mm angle socket
  • 4x JST1.25mm straight socket
  • 1x SH1.0 4Pin adapter cable
  • 1x Type-C to SH1.0 adapter
  • 1x XT30 power cord
  • 1x Filter capacitor
  • 1x 30mm double head VTX connector wire
  • 1x 60mm single head VTX connector wire
