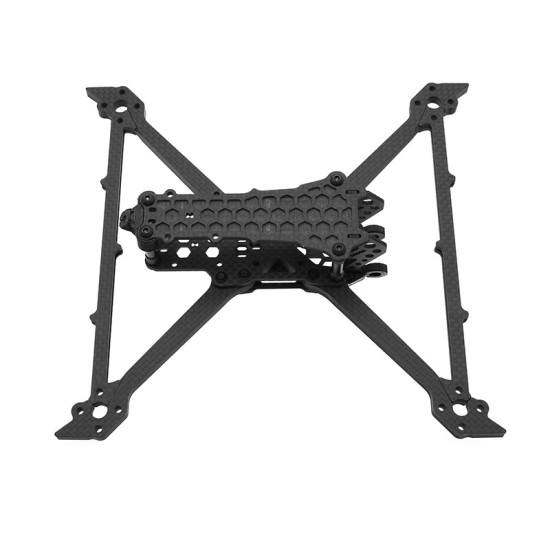

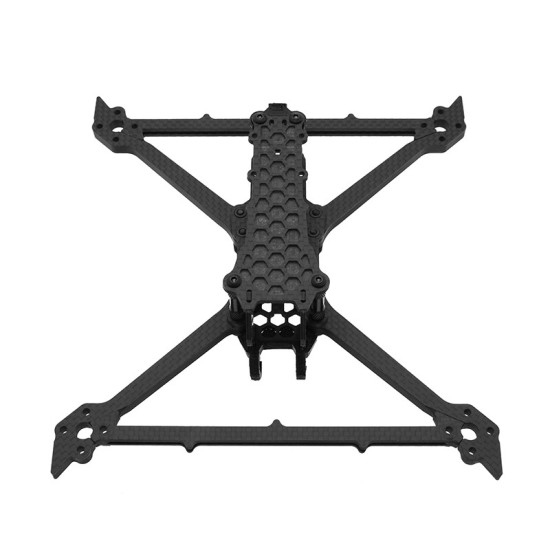

Lethal Conception - Kut-R (5")

Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5
Lethal Conception - Kut-R (5")

Item can be returned in its original condition for a full refund within 30 days of receipt

This product has been verified to be delivered safely in its original packaging, box or bag, reducing unnecessary packaging. For purchases over EUR 50, we offer the option of FREE delivery to your home!

70.90€
Ex Tax: 58.11€
  • Stock: In Stock
  • Model: KUT-R
2 sold
0 views
Tags: Lethal , Conception , - , Kut-R , (5")

Captain Lethal hits hard!

After months of tests, Lethal Conception returns to the sources with a frame of race sharpened to chain the lipos!

The mission was to provide an universal race frame to meet the expectations of all pilots, regardless of their video system and hardware preferences. (Not compatible with DJI O3).

With a sliced design, no chamfer and geometry in TrueX, the Kut-R will help you fight your way to victory.

Lethal Conception innovates once again with a unique design of reinforcement bars, which gives it significant rigidity while reducing its weight.

Thanks to its slightly elongated body, you can accommodate a Vista in the back while maintaining a compact frame.

Although it is a frame studied for the breed, you are free to use it as you wish thanks to a wide choice of additional 3D prints (GoPro support/GPS support etc...)

Anyway, you will have strong views on this frame!

The Kut-R is:

- HD compatible or analog (with a 19mm micro camera)
- Interchangeable 6mm arms by removing only 2 screws (dissociated from the stack)
- An internal height of 25mm for easy mounting
- The possibility of mounting a stack in 20x20 or 30x30mm
- Supplied with all the Tpu necessary
- An original and neat design

Find Lethal Conception on Facebook :

- Follow the Brand here.
- Come and show your Builds here.
- Follow the pilot here.

Assembly example :

Specifications

  • Size : 5" TrueX
  • Carbon : T300 Full layer Plain Mat
  • Top plate / middle plate distance : 25mm
  • Motor mounting : 16x16mm
  • Motor center distance : 147mm
  • Camera distance : Micro (19mm)
  • Central stack mounting : 20x20mm, 30x30mm
  • Weight : 93g (with screws)
  • Compatibility : Vista unit

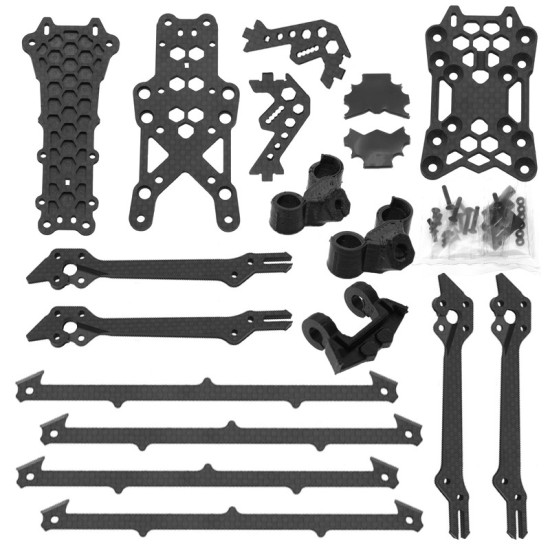

Included

  • 1x Top plate 2.5mm
  • 1x Middle plate 2.5mm
  • 1x Bottom plate 2.5mm
  • 4x Arm 6mm
  • 2x Camera plate 2mm
  • 4x Brace arm
  • 1x Lipo strap
  • 1x Set of screws
  • 1x Lipo pads set
  • 1x Immortal T TPU mount
  • 2x Vista Antenna TPU Mount

Note : Only the frame is included

Example configuration (parts not included)

  • Stack (FC + ESC): Combo XRotor Micro 40A 4in1
  • Motors: RCinpower Wasp Major 22.6-6.6 - 2020KV
  • VTX: Caddx Vista
  • Camera: Caddx Nebula Pro
  • Battery: Tattu R-Line 6S 1400mAh 120C
  • Propellers: Gemfan Hurricane 51433-3
