Beaver 5inch Frame Kit By Armattan
Item can be returned in its original condition for a full refund within 30 days of receipt
This product has been verified to be delivered safely in its original packaging, box or bag, reducing unnecessary packaging. For purchases over EUR 50, we offer the option of FREE delivery to your home!
116.90€
Ex Tax: 95.82€
- Stock: Out of stock
- Model: BEAVER-FRAME
0 sold
5 views

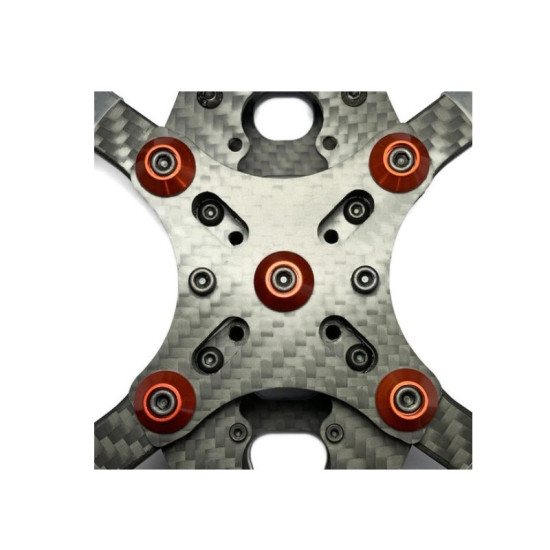

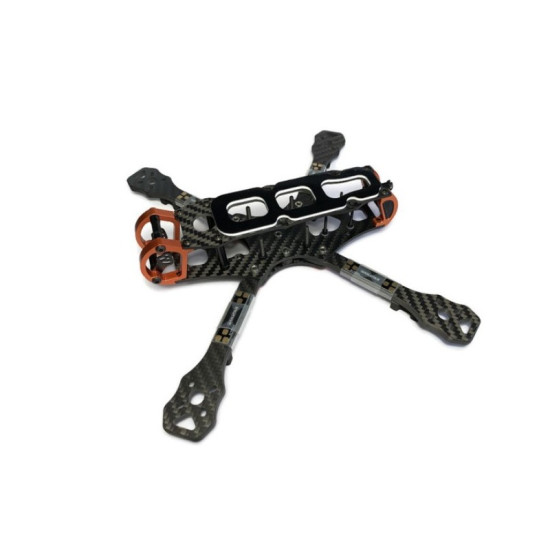

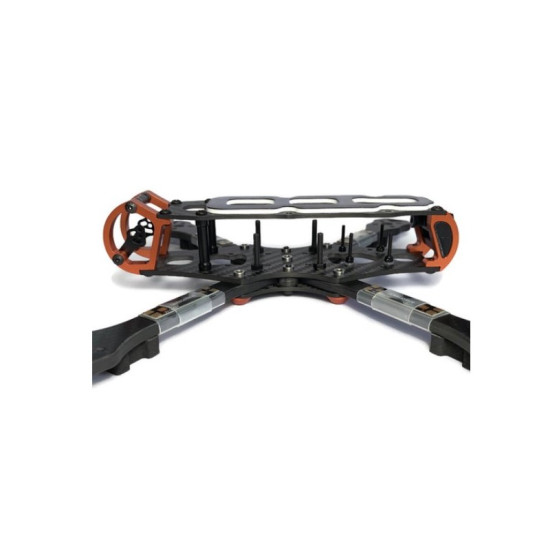

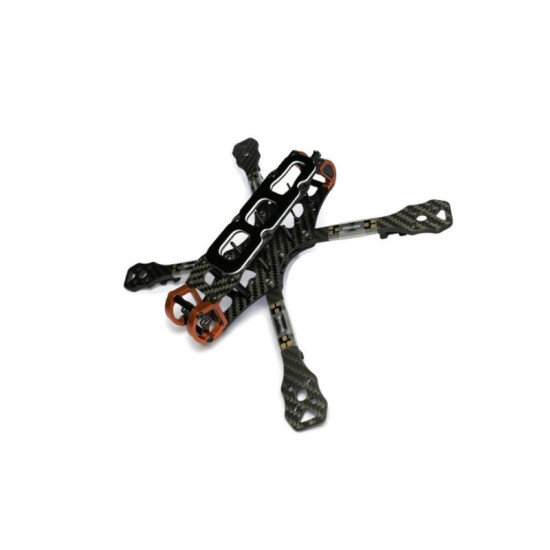

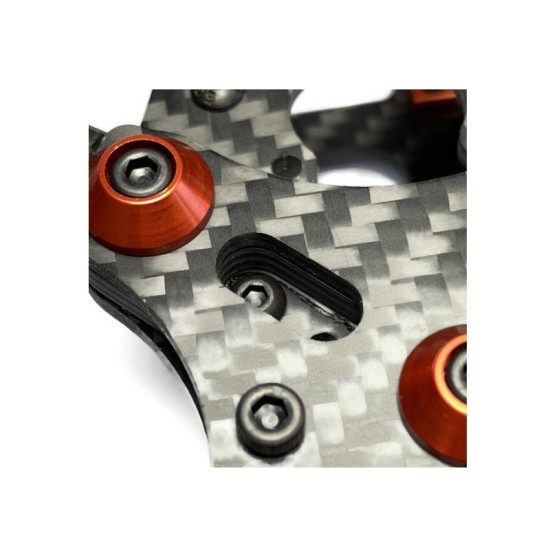

This 5" frame from Armattan demonstrates rigidity, solidity and ease of maintenance, all for a weight of 126g.
The Beaver is a successor to the mythical Chameleon in terms of orange look but is a concentrate of novelties after five years of work.
Specifications
- Frame Weight : 126g
- Motor to Motor : 235mm
- Frame Shape : Compressed X
- Main Plate Thickness : 2.5mm
- Arm Thickness : 5mm
- Motor Mount Pattern : 16x16 or 16x19 or 19x19mm
- Stack Mounting : Two 30.5x30.5mm stacks(center and rear) +two 20x20mm (4 possible positions)

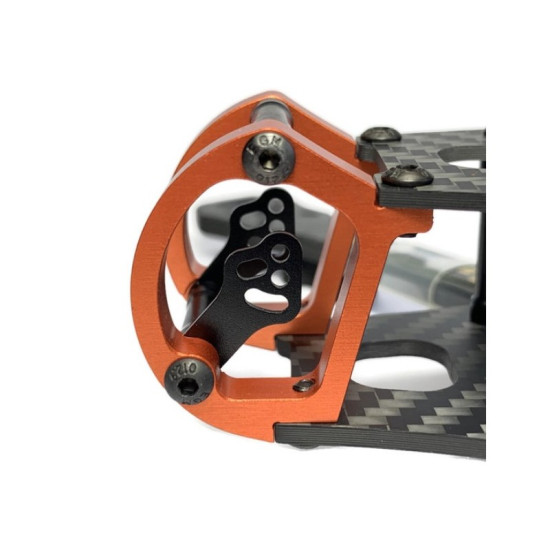

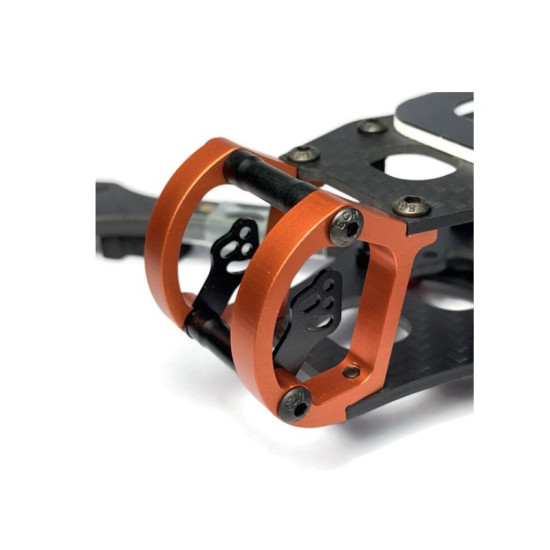

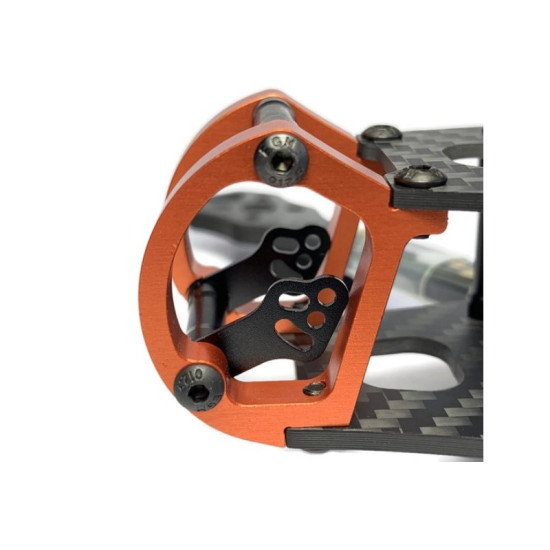

- FPV Camera Mount : 20mm(DJI) or 19mm Micro cam
- Max Stack Height : 25mm
Recommended parts (not included)
- Motor : 2306 1700kv
- ESC : Skystars KO 45amp 4in1 (M3 20x20)
- Props : HQprop Juicy J40 5.1x4x3
- Battery : 4S between 1300mAh & 1600mAh / 6S between 1100mAh & 1300mAh
Included
- 1x Frame
- 1x Hardware set
- 1x Set of foams and pads
- 2x Strap
- 1x Universal antenna mount
- 4x Motor wire extension PCB
- 1x Heat shrink 20mm
