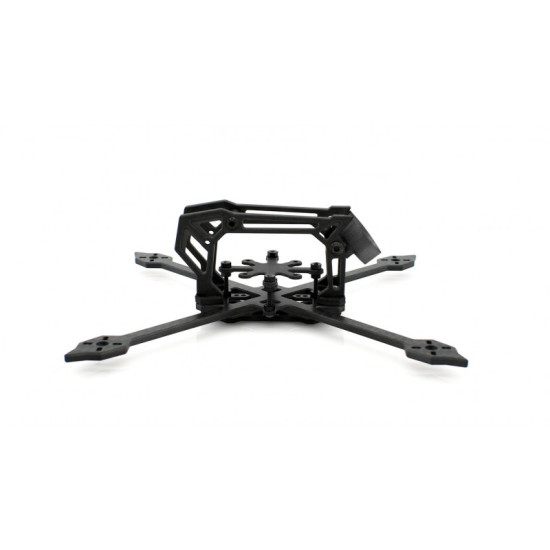

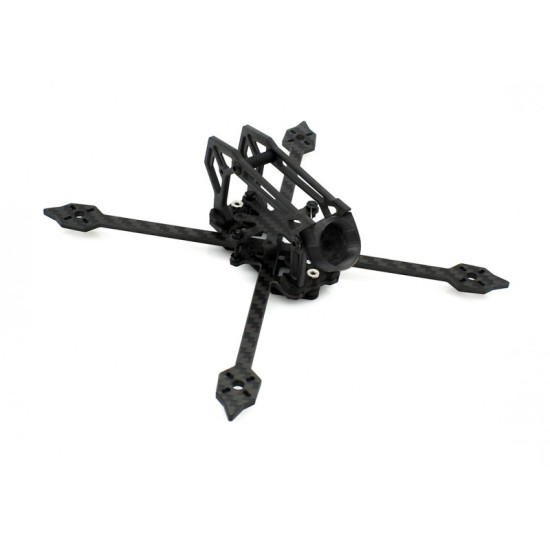

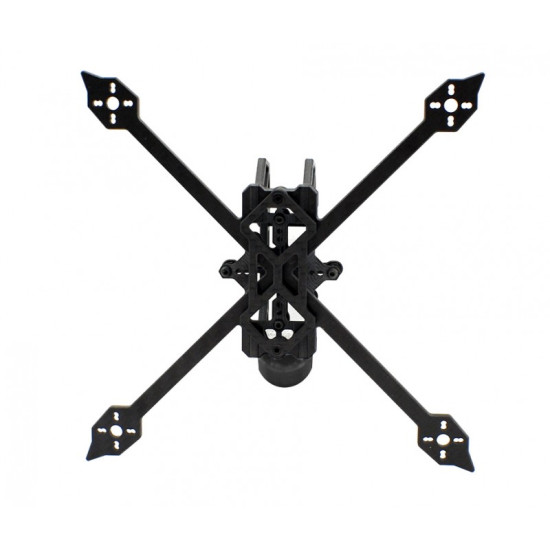

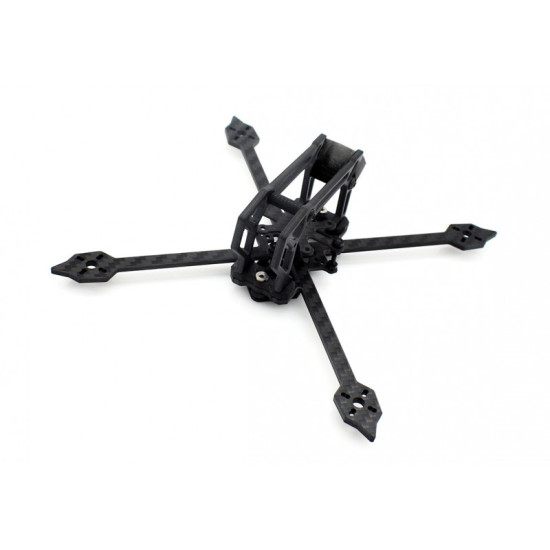

Lethal Conception - Ultra 4" Frame Kit

The Ultra is the ideal tool to carry wherever you go. Wheter racing, freestyle, long range or Cinematic, the Ultra offer the right set-up.

Building instructions : Here

Specifications (4’’)

• Geometry : True X / 163 mm
• Main Plate Thickness : 3mm
• Mounting : 26*26mm/20*20mm/16*16mm
• Motor Mount : 9x9mm and 12x12
• Camera Mount : 14mm (Nano)
• Weight: 31.4g
• Compatible Caddx Nebula Nano V2
• <250gr

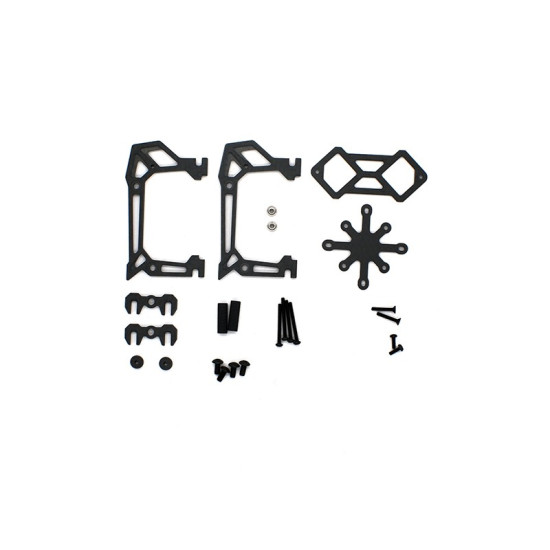

Includes

• 1 x Main Plate 4’’ 3mm
• 2 x Cam Plate 3mm
• 2 x Cam Plate Lock 3mm
• 2 x Strap Plate Spacer 3mm
• 1 x Strap Plate 2mm
• 1 x Vista Plate 2mm
• 1 x Screw Set Steel 12.9
• 1 x Strap Lipo
• 2 x Reinforcement bar

Recommended Configuration (<250gr)

• AIO : Iflight - Beast Whoop H7 AIO 55A
• Motors : Xnova - T1404 - 3800kv
• Camera/VTX : Caddx Vista Nebula Nano V2
• Antenna : TrueRC OCP 5.8GHz – U.fl (Short) - LHCP *Support provided for this antenna
• Props:  4" - Gemfan Hurricane 4024
• Battery : 650 - 850mAh, 3 - 4S
• HD Camera : BetaFPV SMO 4K
