Out of stock
Rush Blade F722 30x30 Flight Controller V2 For DJI By RushFPV
69.90€
Ex Tax: 57.30€
RushFPV continues to feed its HD lineup with the Blade F722 DJI V2 flight controller.

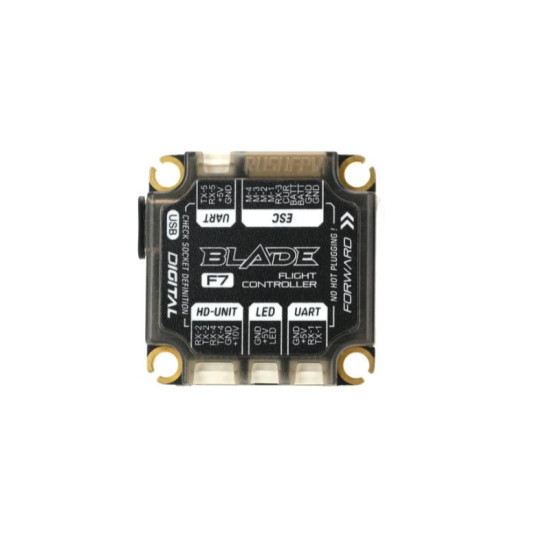

This FC in 30.5x30.5mm is equipped with a case making it more resistant to shocks.

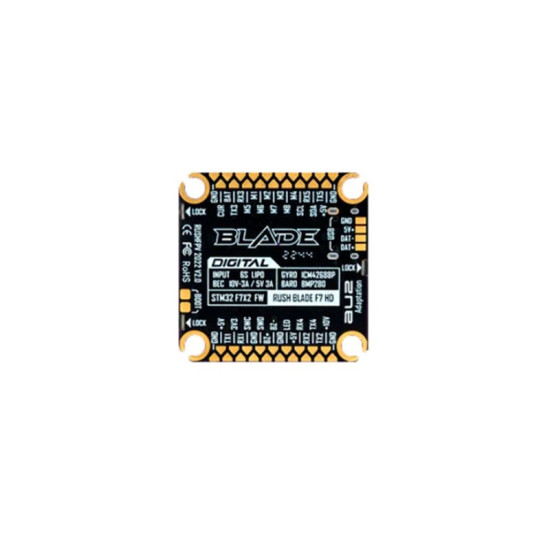

This HD version has an STM32 F722 processor, an ICM42688P gyro, a BMP280 baro or a 16Mb blackbox.
Bullet points
- High performance STM32 F722 MCU with speeds up to 216MHz.
- Gyroscope: ICM42688P, low noise.
- Integrated analog OSD.
- Modular cable design with reliable locking.
- PC case resistant to shocks, easy to disassemble and isolating from dust and grass.
Specifications
- MCU ：STM32F722RET6
- Gyro ：ICM42688P
- BEC : INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
- Blackbox ：16MB FLASH
- Target： RUSH_BLADE_F7_HD
- Port ：8×PWM 5×UART 1×I2C
- ADC： V-BATT / CURR-ESC
- LED：WS2812 LED STRIP
- Baro：BMP280
- Mounting holes： 30.5*30.5mm
- Size ：36.5mm*37mm*5.2mm
- Weight ： 11g(without cable)
Included
- 1x RUSH BLADE F722 V2 30x30 Flight Controller For DJI HD
- 2x 60MM UART Cable
- 1x 60MM ESC Cable
- 1x 60MM LED Cable
- 1x 90MM HDCable
- 1x 110MM Air Unit Cable
- 5x 8MM Grommet
- 5x 5MM Grommet
