DJI Video Transmitter

DJI Video Transmitter

With the latest O3 Pro video transmission technology, the DJI Video Transmitter offers a stunning 20,000-foot ground transmission range. In addition to 2.4 GHz and 5.8 GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.

Tips
1. Requires the DJI High-Bright Remote Monitor for use.
2. Measured in Control mode with FCC compliance in a standard, interference-free environment.

Specifications
Max Transmission Distance: Approx. 20,000 ft (approx. 6 km for FCC, approx. 4 km for CE/SRRC/MIC)
Max Resolution and Frame Rate: 1920×1080@60fps
Operating Frequency:
Non-DFS Frequency Band
2.400-2.484 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Max Bandwidth: 40 MHz

Compatibility
High-Bright Remote Monitor
Ronin 2
RS 3 Pro

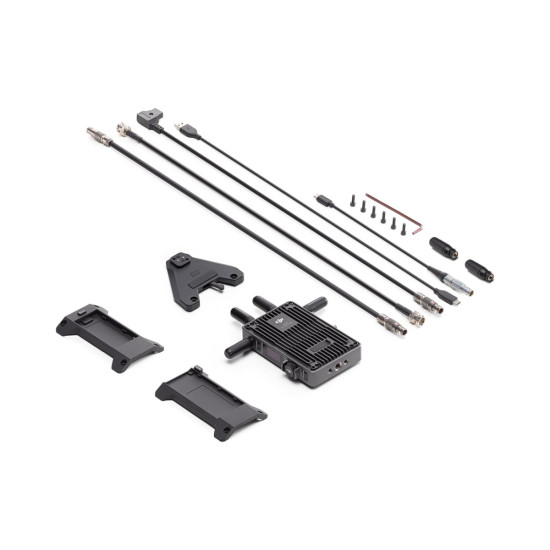

In the Box:
1x Video Transmitter
4x Ronin Video Transmission Antenna
1x WB37 Battery Adapter
1x NP-F Battery Adapter
1x USB-C Cable
1x SDI Cable
1x DJI DC Power Cable
1x DC to P-TAP Power Cable
1x USB-C to LEMO Power Cable
1x RS Gimbal Mounting Plate
1x Installation Toolkit
