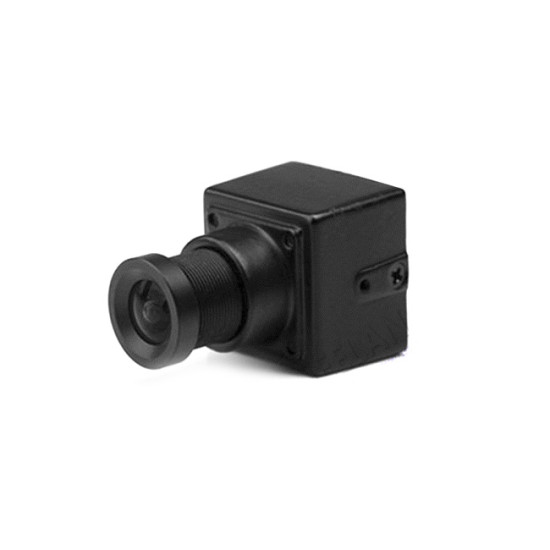

Low light FPV Cam Super HAD II, 540TVL 20x20 mm

Low light FPV Cam Super HAD II, 540TVL 20x20 mm
Low light FPV Cam Super HAD II, 540TVL 20x20 mm

One of the best FPV cams, no latency, extreme low light, light weight and its working on all OSD without flickering.
Tiny Size 20x20mm Low Lux 540TVL high resolution mini CCD video camera

Description

Mini high resolution camera, this is a new variable voltage CCD video camera, it runs at a 540TVL high resolution and very good quality performance. The benefit is the convenience of the DC 5-15V power range.

Fetures:
* 1/3 Sony SuperHAD II CCD
* 540TV Lines, 0.01Lux,
* Mini size : 20x20mm, 2 boards
* Good image in low light conditions

Low Current Frequency , only 50mA, solve the hot problem ,nice back light compensation, used for the ATM surveillance or under sharp contrast in lighting conditions.

Model No.
CS3120CH (3.6mm board lens)
Image Device
1/3" Sony Super HAD II Color CCD
Horizontal Resolution
540 TVL
Minimum Illumination
0.01 lux
Number of Pixels
PAL : 752(H) x 582(V), NTSC :768(H) x 492(V)
Scanning System
PAL:625 Lines,50 Field/Sec; NTSC:525 Lines,60 Field/Sec
Sync System
Internal Synchronization
Video output
1Vp-p 75 Oms , Negative
White Balance
Auto
S/N Ratio
More Than 48dB (AGC off)
Gamma Characteristic
0.45
Electronic Shutter
PAL : 1/50~1/100,000 Sec; NTSC :1/60~1/100,000 Sec, auto
Lens
3.6mm MTV lens
Power Consumption
DC 5-15V, 50mA
Operation Temperature
-10℃ ~ + 50℃, RH 95% Max
Storage Temperature
-20℃ ~ + 60℃, RH 95% Max
Housing
Black
Dimension
20x20mm,2-board
