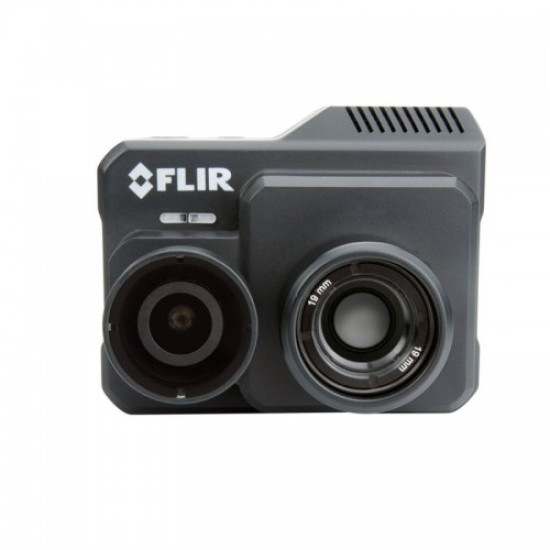

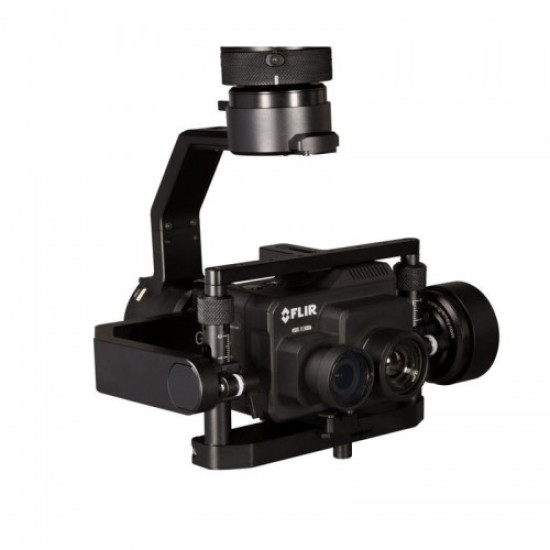

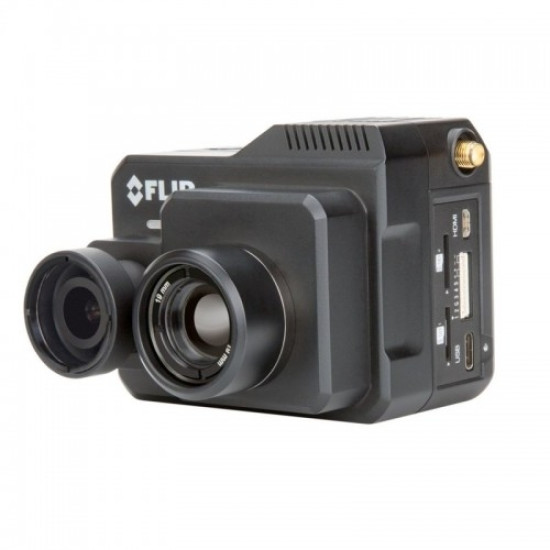

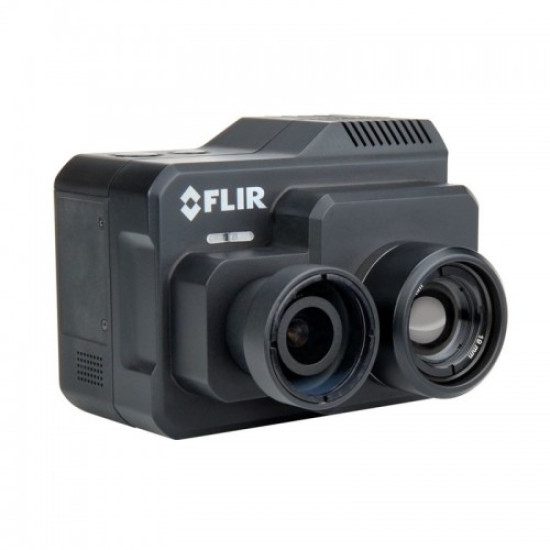

The ultimate drone thermal imaging solution is here. The new FLIR Duo Pro R combines a high resolution, radiometric thermal imager, 4K color camera, and a full suite of on-board sensors to bring you the most powerful dual-sensor imaging solution in the world for small commercial drones. Capture actionable data around the clock with Duo Pro R.
Dual-Sensor Imaging
High resolution thermal and 4K color imagers integrated into a single powerful, convenient package.
Select the video source you want – visible, thermal with MSX, or picture-in-picture.
With a wide power input range of 5-26VDC and ready analog or HDMI digital video outputs, Duo Pro R can be made to fit almost any drone.
Fully integrated GPS, IMU, magnetometer, and barometer embed all the metadata in still images needed to create accurate maps.
Configure and control the camera in the air with up to three PWM inputs, or interface to MAVLink devices.
Records digital thermal video and stills to two dedicated on-board microSD cards.
Overview | Duo Pro R 640 | Duo Pro R 336 |
---|---|---|
Thermal Imager | Uncooled VOx Microbolometer | |
Spectral Band | 7.5 – 13.5 µm | |
Thermal Sensitivty | <50 mK | |
Thermal Sensor Resolution Options | 640 x 512 | 336 x 256 |
Thermal Lens Options | 13 mm: 45° x 37° | 9 mm: 35° x 27° |
19 mm: 32° x 26° | 13 mm: 25° x 19° | |
25 mm: 25° x 20° | 19 mm: 17° x 13° | |
Thermal Frame Rate | 30 Hz | |
Visible Sensor Resolution | 4000 x 3000 | |
Visible Camera FOV’s | 56° x 45° | |
Radiometry | ||
Measurement Accuracy | +/- 5 C or 5% of readings in the -25°C to +135°C range +/- 20 C or 20% of readings in the -40°C to +550°C range |
|
Physical Attributes | ||
Size | 87 × 82 × 69 mm | |
Weight | 325 g – 375 g (640-25 mm only) |
325 g |
