- Stock: Out of stock
- Model: LUCID-PRO-F60A-AM32
This product is not available. You can fill out the form below to be notified when the product will be available again.

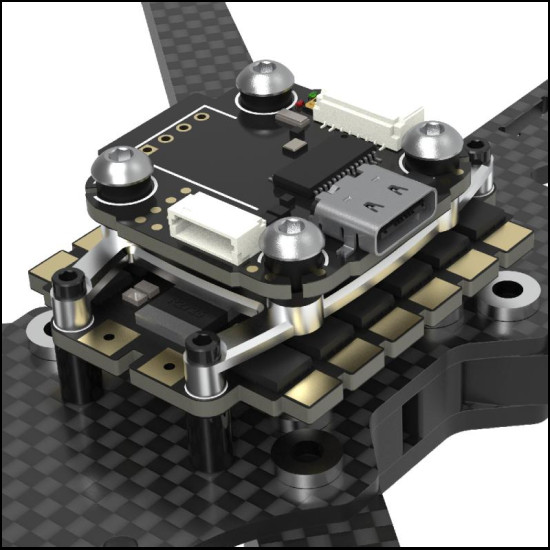

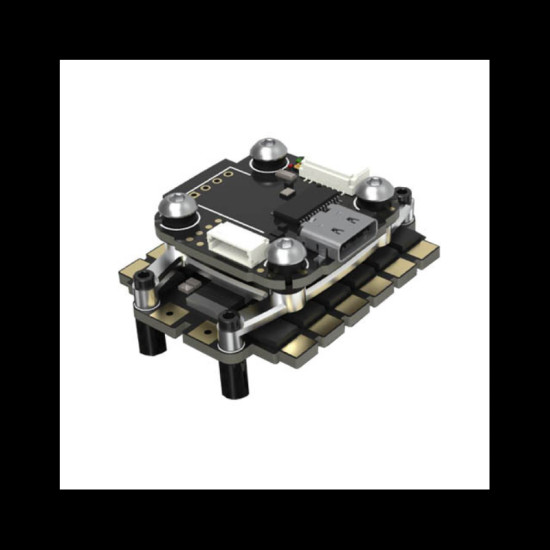

Here is the latest stack made by Team BlackSheep, the Lucid Pro F60A AM32 designed for racing and freestyle.
It consists of an F435 flight controller equipped with an AT32F435RMT7 processor, an MPU6000 gyro, an 8Mb blackbox, an AT7456E OSD, a double BEC as well as 6 UARTS. The 60A ESC is based on AM32 firmware, is compatible with 3-6S LiPo voltage and supports Dshot 300/600 bi-directional protocols and KISS ESC telemetry.

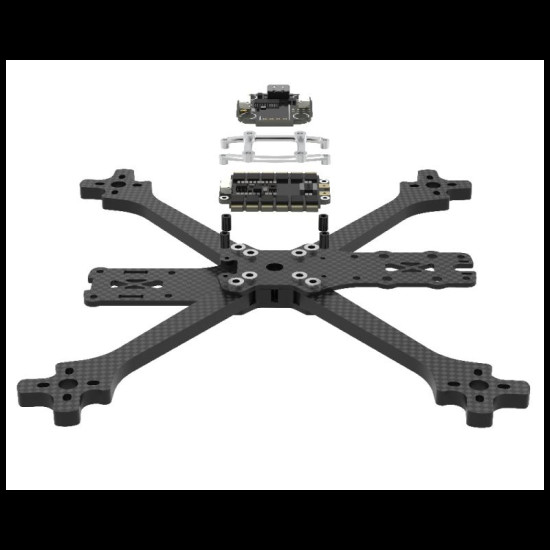

TBS has opted for a choice of 20*20mm or 30.5*30.5mm mounting in order to simplify its installation on your frame and offering compatibility with quads between 3" and 8"!
Compatible with all digital and analog video systems, the Lucid Pro F60A AM32 has a so-called "Gorilla" mount giving it greater power thanks to the innovative mounting brackets which avoid the passage of mounting bolts in the middle of the ESC.

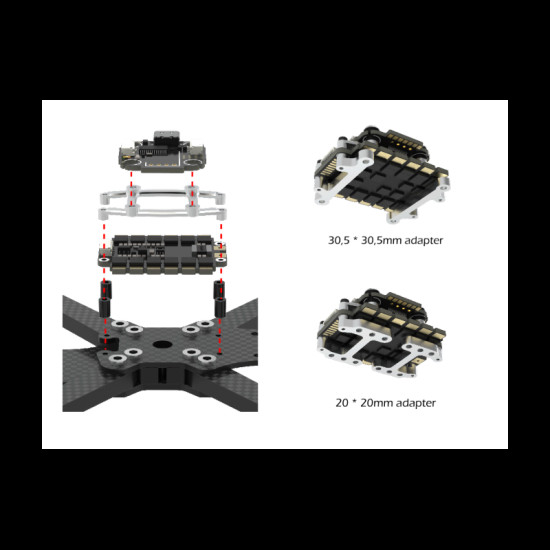

Note: If you want to mount it in 20*20 or 30*30, you will need to purchase a separate adapter (related accessories).
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

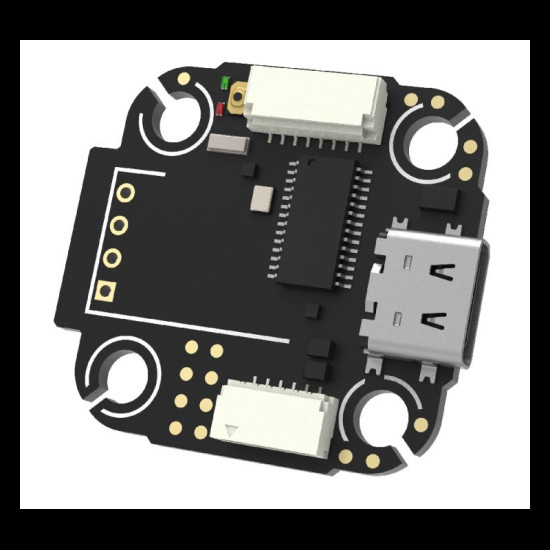

FC
- MCU : AT32F435RMT7, 288MHz
- Gyro : MPU-6000
- Motors : 4 motors, with telemetry and current sensor
- BEC : 9V, 2.5A. 5V 2A
- OSD : AT7456E
- Blackbox : 8M
- UARTs : 6 (UART1/UART3/UART4/UART5/UART7/UART8)
- Input : 3S-6S
- Size : 31mm*29mm
- Mounting : 20mm*20mm
- Weight : 4.51g
Included
- 1x F435 F60A AM32 TBS Stack

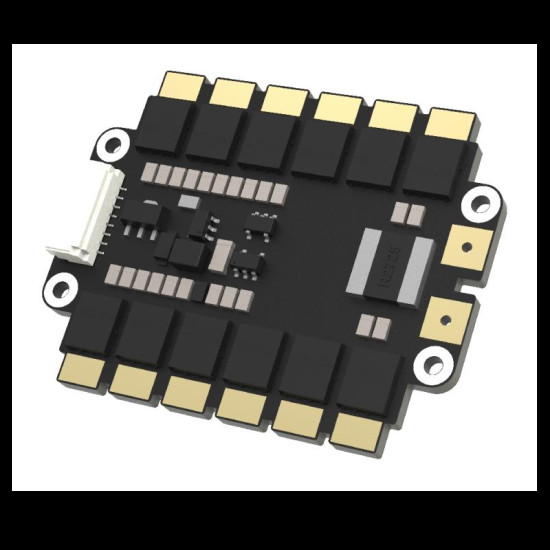

ESC
- ESC software : AlkaMotors32 (AM32)
- ESC target : tbslu6s4in1
- Rated current :60A x 4, 300 seconds
- Peak Current : 70A x 4, 60 seconds
- Propellers : Up to 9", over 7" requires good airflow
- Input : 3-6S Lipo
- Protocol : Bi-directional Dshot 300/600), KISS ESC Telemetry
- ESC Current port: Yes
- BEC : No
- Size : 34mm*44mm
- Mounting : Gorilla-mount (39.5 x 16.0mm) or brackets for 20x20 mm, 30.5x30.5 mm
- Weight : 13.81g, 19g incl. brackets
