Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro

Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
Kakute F722 Tekko32 F4 Metal 65A Stack By Holybro
16.31€
Ex Tax: 16.31€
  • Stock: In Stock
  • Model: 20265
3346 views
Add to Cart

This product is not available. You can fill out the form below to be notified when the product will be available again.

Tags: kakute , f722 , tekko32 , f4 , metal , 65a , stack , by , holybro

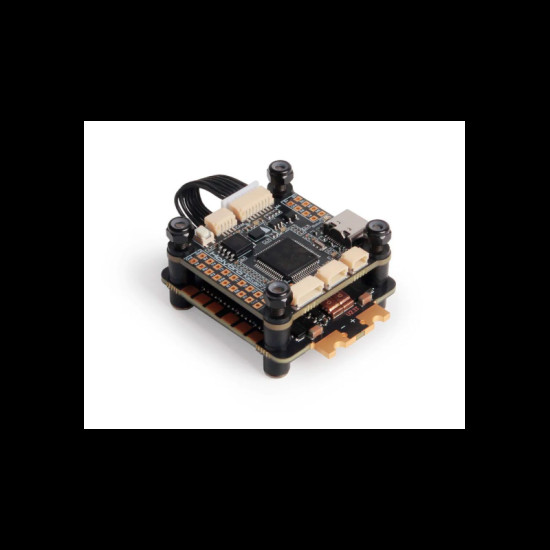

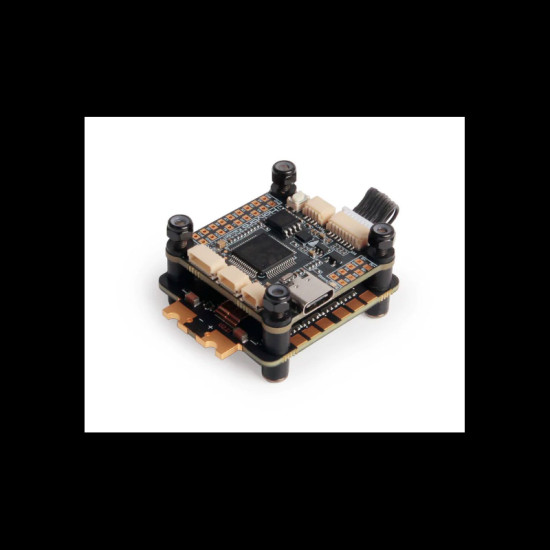

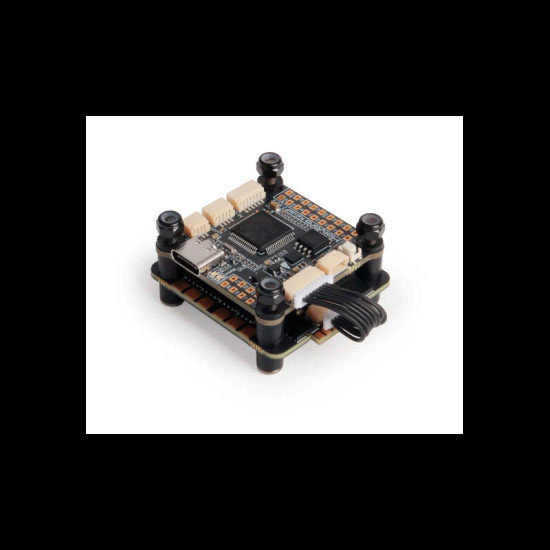

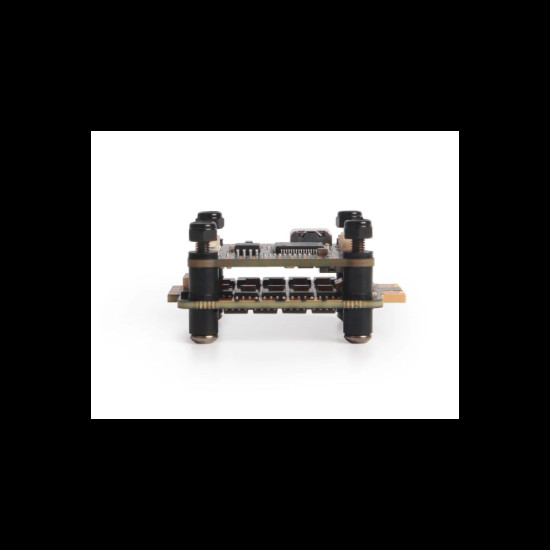

This Holybro stack consists of a Kakute F722 flight controller and a Tekko32 F4 Metal 65A 4in1 ESC.

Compatible with both digital and analog VTX, the Kakute F722 Tekko32 F4 Metal 65A has a built-in OSD, 16MB blackbox, LED port and can support up to 8S voltage while providing a stable output of 9V/3A and 5V/2A.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

FC

  • MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
  • IMU: ICM42688P (SPI)
  • Barometer: BMP280
  • OSD: AT7456E
  • 5x hardware UARTS (UART1,2,3,4,6)
  • 7x PWM Outputs (6 Motor Output, 1 LED)
  • Onboard 16 Mbytes for Blackbox logging
  • Battery input voltage: 3S - 8S
  • BEC: 9V/3A, 5V/2A, 3.3V/0.2A
  • Connector
  • 2x JST-SH 8pin port for ESC
  • 1x JST-SH 6pin port for HD VTX
  • 2x JST-SH 4pin port for Receiver & Analog Camera
  • 1x JST-SH 3pin port for LED
  • USB Type -C
  • Dimensions: 35x35mm
  • Mounting Holes: Standard 5 x 30.5
  • Weight: 8g
  • Betaflight Firmware Target: KAKUTEF7MINIV3
  • INAV Firmware Target: KAKUTEF7MINIV3

ESC

  • Continuous Current: 65A x4
  • Peak Current: 75A x4
  • Supports 4-6S battery
  • Supports DShot 150/300/600/1200 and MultiShot/OneShot/Proshot/PWM etc.
  • ESC Telemetry Supported
  • Built-in Analog Current Sensor
  • No BEC Output
  • AM32 Firmware
  • Version firmware : AT32DEV_F421 V2.08
  • 1000uF 35V Capacitor Included (Highly Recommended for 6s Setup)
  • Ammeter Scale Ratio: 180
  • Dimensions: 43x44mm
  • Weight: 15.8g
  • Mounting Holes: M4 30.5x30.5mm

Included

  • 1x Kakute F722 Tekko32 F4 Metal 65A Stack
