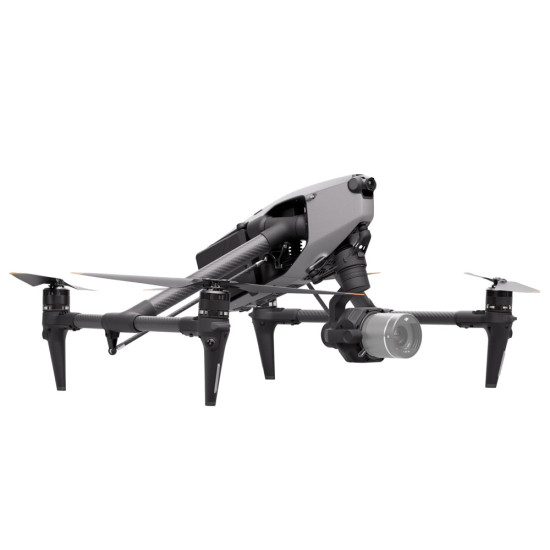

DJI Inspire 3

DJI Inspire 3

Master the Unseen
At the peak of aerial cinematography, DJI Inspire 3 offers unprecedented workflow efficiency, camera language, and creative freedom. This all-in-one 8K camera drone empowers professional-level filmmakers to fully maximize the potential of any shot and master the unseen.

The Definition of Power and Performance

Sleek, Integrated Design
Inspire 3 is a professional camera drone that adopts a fluid new design that takes aerodynamics fully into consideration to reduce air resistance.

The max dive speed has increased from the 9 m/s of Inspire 2 to 10 m/s, while vertical ascend/descend speed has increased from 6 m/s and 4 m/s to 8 m/s.

Powerful maneuverability delivers responsive, accurate control and an extended flight time of up to 28 minutes.

The FPV camera, visual sensors, positioning antennas, and storage card slot all adopt designs that are seamlessly integrated into the airframe for a minimalist look and modern industrial aesthetics.

Inheriting the classic transformable configuration of the Inspire series, Inspire 3 uses an all-new design that supports 360° Pan and Tilt Boost structures. When the landing gear is lowered, the gimbal supports obstruction-free 80° upward-angle shooting, enabling cinematographers to capture strikingly innovative shots.

• Tilt Boost
• 360° Pan
• Travel Mode

From the outer design to the internal structure, every detail of Inspire 3 was carefully considered and optimized.

• 3D Preview
• AR Preview

Spacial Intelligence Beyond Boundaries

High-Mobility Precision Flight System

Centimeter-Level RTK Positioning
Inspire 3 integrates high-precision RTK positioning technology used in industries such as architecture and surveying to deliver centimeter-level accuracy. Compared with traditional meter-level positioning supported by Global Navigation Satellite Systems (GNSS), RTK not only makes flying more stable, but also makes flight-route planning more accurate, significantly improving creative efficiency.

RTK antennas have been built into the airframe with a new stacked ceramic design, which enables three types of GNSS (GPS, BeiDou, and Galileo) and delivers dual-frequency positioning down to the centimeter level. By activating an RTK Network or setting up a D-RTK 2 Mobile Station, users can achieve highly accurate positioning without mounting any additional modules.

Learn about Network RTK and RTK Base Station

Custom Network RTK
Use custom network RTK directly in RTK-covered areas. Simply enable internet access on DJI RC Plus and connect to an NTRIP server to allow Inspire 3 to receive comprehensive data for fast and accurate positioning.

RTK Base Station
In environments without network RTK  coverage, the RTK function can be used by setting up a D-RTK 2 Mobile Station. Then, Inspire 3 can receive comprehensive data from the mobile station for accurate positioning.

Dual-Antenna Orientation
Both the front and the rear of Inspire 3 have a built-in stacked ceramic antenna, providing powerful anti-magnetic-interference capability to further improve flight accuracy and safety.

Waypoint Pro
Specially designed for aerial cinematography, Waypoint Pro enables flight-route and shot planning with a wide range of customized settings. With the new Repeatable Routes and 3D Dolly modes, an innovative automated shooting experience can be easily achieved. In addition, RTK centimeter-level positioning ensures more accurate flight-route planning and execution. Whether solo shooting or in a professional crew, use Waypoint Pro to master even highly-complex scenes.

Repeatable Routes
Using Repeatable Routes, the aircraft will automatically fly on the same route and maintain all preset parameters such as altitude, speed, gimbal angle, and camera settings. Repeating the same flight mission allows cinematographers to effortlessly perform difficult one-takes, or to fly at different times in the same place to easily create long-duration timelapses that capture transitions such as day to night or season to season.

3D Dolly
3D Dolly can simulate a crane, cablecam, or dolly on film sets while going far beyond the limitations of those devices.
After planning a flight route, the cinematographer can manually control the aircraft to move along the route back and forth while adjusting parameters such as speed, gimbal angle, and more according to the needs of the shot. This makes complicated cinema-grade camera movements easier and more efficient and can deliver improved visual effects.

Spotlight Pro
Upgraded from Inspire 2, Spotlight Pro further enables solo creators with more shot possibilities. Based on powerful machine-learning algorithms, Inspire 3 supports automated subject recognition and locking for people, vehicles, and boats with greater accuracy than its predecessor.

When using Spotlight Pro"s Follow mode, the aircraft and gimbal camera orient toward the same direction and remain locked on the subject so that the pilot can get circling shots without manual framing adjustments.

• Follow mode
• Free mode

In Free mode, thanks to the 360° gimbal pan of Inspire 3, the gimbal camera can stay locked on a subject, while a solo pilot uses the FPV camera to check their surroundings and control the flight route more responsively to achieve complex camera movements more easily.

Omnidirectional Sensing System
Inspire 3 is equipped with nine visual sensors, which enable a robust omnidirectional sensing system that can detect obstacles in all directions and provide comprehensive protection for flying.

For the first time, a fisheye camera has been added to each of the four landing arms. This design helps to avoid obstruction from the airframe when the landing gear is raised and allows for horizontal obstacle sensing when the landing gear is lowered.

• 360° Horizontal Visual Sensors
• Upward Visual Sensors
• Downward Visual Sensors
• Downward ToF Sensor

Customizable Obstacle Sensing
In addition, Inspire 3 features a new customizable function to help ensure greater flight safety and more creative freedom. Horizontal, upward, and downward obstacle sensing can be enabled or disabled independently, and an obstacle alert range can be manually set to suit different scenarios.

When active avoidance is turned off, users can still view the distance from an obstacle on the navigation display in real-time and receive an audio alert when an obstacle is within a set range without the aircraft performing an automatic avoidance movement. This brings new possibilities to professional aerial teams that want to achieve more complex camera language.

Ultra-Wide Night-Vision FPV Camera
Inspire 3 is equipped with a new 1/1.8-inch-sensor FPV camera with a 3μm pixel size, an ultra-wide DFOV of 161°, and the ability to transmit live feeds at up to 1080p/60fps. Compared to its predecessor, the DFOV is approximately doubled. This FPV camera delivers more impressive light-sensing capability, allowing pilots to observe their surroundings vividly and clearly, even at night, and ensure greater levels of flight safety.

Inspire 3
Sensor Size: 1/1.8-inch
DFOV: 161°
Live Feed Quality: 1080p/60fps

Inspire 2
Sensor Size: 1/7.5-inch
DFOV:  84°
Live Feed Quality: 480p/30fps

A Stunning New Aerial Perspective

Full-Frame 8K Imaging System

Tailormade 8K Sensor
DJI’s lightest-ever full-frame three-axis gimbal camera, the X9-8K Air, is custom-built for Inspire 3 to take drone cinematography to the next level. It features DJI’s latest image processing system, CineCore 3.0, supporting internal recording of up to 8K/25fps CinemaDNG Video as well as 8K/75fps Apple ProRes RAW video, meeting the needs of top-class film and television productions.

• Internal Recording of ProRes RAW up to 8K/75fps
• Internal Recording of CinemaDNG up to  8K/25fps

8K means ultra-high-resolution aerial footage that retains true-to-life texture close to what the human eye sees, with clarity that stuns audiences when displayed on larger screens. RAW brings X9-8K Air"s sensor fully into play, providing abundant space for visual effects and color grading.

In S&Q mode, X9-8K Air supports internal recording of up to full-frame 4K/120fps ProRes RAW video without cropping, providing more creative editing Options.

Dual Native ISO
X9-8K Air supports dual native ISO. At full-frame 30fps and below, it offers EI 800/4000, supporting the 24fps commonly seen in film productions and the 25fps used in commercial and television productions. At above 30fps, EI 320/1600 is available.

This allows X9-8K Air to record images with exquisite details and minimal noise, even low-light cityscapes or beaches, putting it on par with professional ground-based cinema cameras.

14+ Stops of Dynamic Range
X9-8K Air covers 14+ stops of dynamic range, which captures rich highlight and shadow details in complex lighting scenarios like sunrises and sunsets. High dynamic range brings more possibilities for post-editing, retaining genuine colors even after significant exposure adjustments.

DL Mount Lenses
Inheriting DJI’s proprietary DL mount, X9-8K Air is compatible with an additional 18 mm F2.8 full-frame ultra-wide lens and a new telephoto lens (will be released at a later date) on top of the previous full-frame lens selections of DL 24/35/50 mm F2.8. All five lenses are custom-made for aerial cinematography. The housings are made of lightweight, monocoque carbon fiber, so the lightest lens weighs just 178 g, meeting Inspire 3"s requirement for ultra-high maneuverability.

Learn about the New DL 18 mm F2.8 Lens
The new DL 18 mm F2.8 ASPH full-frame lens is specially made for 8K aerial cinematography. With a full-frame DFOV of 100°, the 18 mm focal length can include more information, making it highly useful for capturing the grandeur of larger subjects like mountains and architecture. Additionally, when closely approaching a subject, the ultra-wide angle can introduce an added visual tension. Its high sharpness and well-controlled chromatic aberration also allow the lens to record 8K imagery with richer details and true-to-life colors.

DJI Cinema Color System (DCCS)
Building on DJI"s mature color science and technology, the DJI Cinema Color System allows the X9-8K Air to retain authentic colors that redefine the look of aerial cinematography. This applies to natural settings and urban landscapes, and also accurately captures skin tones in different environments and lighting conditions. DCCS ensures effortless color matching between X9-8K Air and ground-based cinema cameras such as DJI Ronin 4D, delivering consistent color style from air to ground to meet the needs of film-production post-editing Workflows.

Multi-Camera Timecode Sync
Through the 3.5mm port on the aircraft, you can sync timecode between equipment in the air and on the ground. When dealing with abundant footage from multiple cameras, timecode sync makes the editing process significantly more simplified and efficient.

O3 Pro Video Transmission and Control System

DJI RC Plus
Inspire 3 comes with a professional-level remote controller, the DJI RC Plus, which has a built-in 7-inch 1,200-nit high-bright screen to provide an extraordinary outdoor monitoring experience. It also features an HDMI out port, along with several buttons and dials on the front, back, and top, which enable fast and intuitive operation. Button functions can also be customized to fit users" habits and deliver a more smooth operating experience.
The built-in battery of RC Plus provides an operating time of approximately 3.3 hours, and extends to 6 hours with an external WB37 battery. It also supports battery hot-swapping to improve creative efficiency.

On top of the classic flight control interface, the new DJI Pilot 2 app for Inspire adds a cinema-grade monitoring interface, which allows simple and convenient checking of information like camera exposure, video specifications, focal length, and gimbal angle, easily meeting the monitoring requirements of gimbal operators and DPs.

Professional accessories such as a strap and waist support are also included for more comfortable and efficient long-duration use.

Cinema-Grade O3 Pro Video Transmission
Inspire 3 is equipped with O3 Pro, DJI’s latest cinema-grade video transmission system, which enables a max transmission distance of 15 km in single control mode and 12 km in dual-control mode. Both the gimbal camera and FPV camera support 1080p/60fps live feeds and an ultra-low latency of 90 ms. Compared to the Lightbridge video transmission system of Inspire 2, O3 Pro has taken a generational leap in transmission distance, latency, and overall stability.
For the first time, 4K/30fps live feeds are also supported with a max 5km transmission distance to meet the needs of UHD monitoring and livestreaming on set.

Inspire 3

• Max Video Transmission Range (Single Control): 15 km
• Max Video Transmission Range (Dual Control): 12 km
• Max Live Feed Frame Rate: 1080p/60fps
• Max Live Feed Resolution: 4K/30fps

Inspire 2

• Max Video Transmission Range (Single Control): 7 km
• Max Video Transmission Range (Dual Control): 7 km
• Max Live Feed Frame Rate:  720p/30fps
• Max Live Feed Resolution:  720p/30fps


Independent Links for Dual Control
Compared with its predecessor, the dual-control experience of Inspire 3 has been significantly upgraded. Two remote controllers can receive live feeds and control the drone independently, so the pilot and gimbal operator can be at different positions on set. This breaks Inspire 2"s limitations of binding the primary and secondary control links.
If the pilot loses aircraft signal, the gimbal operator is now able to take control of the aircraft to safely return to home or land directly.

Compatible with the DJI PRO Ecosystem

Supports DJI High-Bright Remote Monitor
In addition to RC Plus, Inspire 3 also allows use of the DJI High-Bright Remote Monitor as a second remote controller. The remote monitor can pair directly with Inspire 3 to receive live feeds, and can even control gimbal and focus when the Ronin 4D Hand Grips are attached. HDMI and SDI ports on the remote monitor can also output live feeds to other monitoring devices.

Supports DJI Three-Channel Follow Focus
As a member of the DJI PRO ecosystem, the new DJI Three-Channel Follow Focus can transmit control signals to Inspire 3 via the O3 Pro transmission system (this requires a DJI High-Bright Remote Monitor to act as an intermediary device). With Three-Channel Follow Focus, the focus puller can achieve accurate remote focus control and stepless aperture adjustments to deliver an integrated wireless monitoring and control experience.

* When DJI Three-Channel Follow Focus is used with two DJI RC Plus remote controllers, the intermediary DJI High-Bright Remote Monitor must connect to the gimbal operator"s RC Plus via HDMI and USB A-C cables. This enables piloting, gimbal control, and focus control to be done independently by the designated personnel.

Supports DJI Master Wheels
When a DJI High-Bright Remote Monitor is paired as the second controller (as the intermediary to the PRO ecosystem), Inspire 3"s gimbal can be controlled using DJI Master Wheels. In this way, it can provide a gimbal control experience on par with Ronin 2 to meet the operating habits of cinematographers.

Supports DJI Transmission
With DJI Transmission, Inspire 3 supports expanded monitoring on set. Connect an RC Plus to a DJI Video Transmitter with Broadcast mode enabled. Then, live feeds can be transmitted to an unlimited number of remote monitors, further improving coordination efficiency.

Built for All-Day Shooting

Efficient Full-Scenario Operation

Dual-Battery System
Inspire 3 is equipped with a new TB51 dual-battery system, which utilizes the latest battery chemistry technology for optimized reliability and performance.

TB51 batteries are smaller, lighter, more streamlined, and higher voltage compared to TB50. They provide a 28-minute max flight time and support hot swapping with a redesigned battery release that allows effortless continuous operation.
If the temperature of the battery goes lower than 18° C (64° F), the battery will trigger an auto-heating function, maintaining adequate flight performance even in locations with temperatures as low as -20° C (-4° F).

New Battery Charging Hub
The all-new foldable battery charging hub strikes the optimum balance between charging efficiency and storage size. It can accommodate eight batteries. In Fast mode, it can charge two batteries to 90% in just 35 minutes and eight batteries to 100% in only 160 minutes. The included 65W USB-C port can also be used to charge an RC Plus.

DJI PROSSD 1TB Included
The included DJI PROSSD 1TB supports a max read speed of 900Mbps and the footage can be read on a computer directly through the provided USB-C to USB-C cable without the need for a card reader.

Storage and Transitions
The newly designed trolley case is equipped with an extendable handle, two side handles, and four 360-degree-movement wheels, making transitions and transportation effortless. Additionally, two numbered locks are equipped for added safety. The well-designed trolley case can store one aircraft, one X9-8K Air gimbal camera, two RC Plus remote controllers, four lenses, twelve batteries, two battery charging hubs, three sets of propellers, and other items. New foldable quick-release propellers are easy to store and don’t require re-installation before each flight.

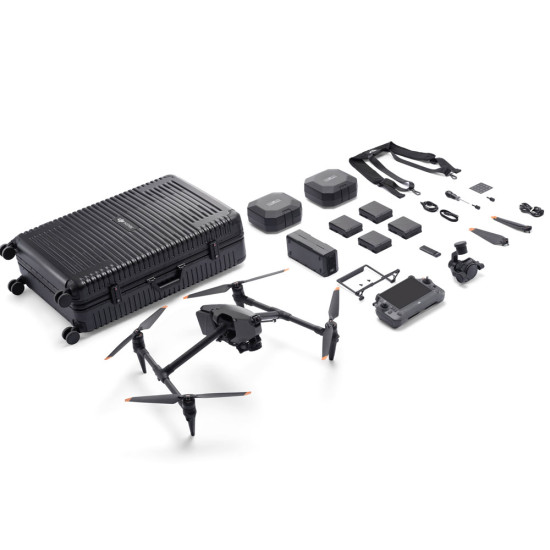

In the Box:
1x Inspire 3 Aircraft
1x RC Plus
1x RC Plus Strap
1x RC Plus Waist Support
6x TB51 Intelligent Battery
1x TB51 Intelligent Battery Charging Hub
1x TB51 Intelligent Battery Charging Hub AC Cable
1x TB51 Intelligent Battery Paired Batteries Sticker
3x Inspire 3 Foldable Quick-Release Propellers (Pair)
1x USB-C to USB-C High-Speed Data Cable
1x USB-C to USB-A Data Cable
1x PROSSD 1TB
1x Inspire 3 Trolley Case
1x Zenmuse X9-8K Air Gimbal Camera
1x Zenmuse X9-8K Air Gimbal Camera Case
1x Lens Carrying Box (18/24/35/50mm)
2x Inspire 3 Gimbal Rubber Dampers
1x Double-Headed Screwdriver
3x Documents
