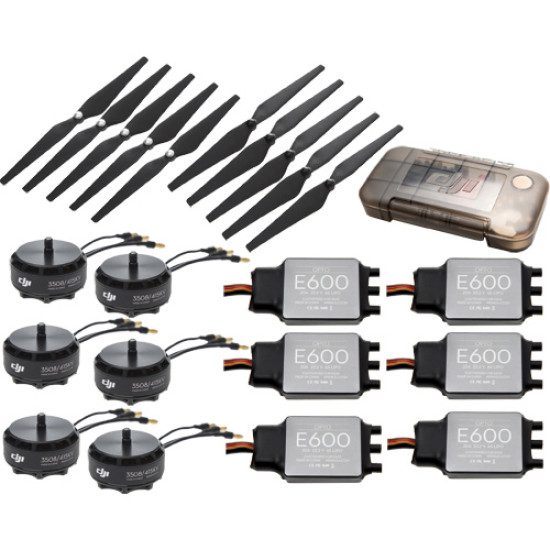

delivery:
6x motors
6x esc

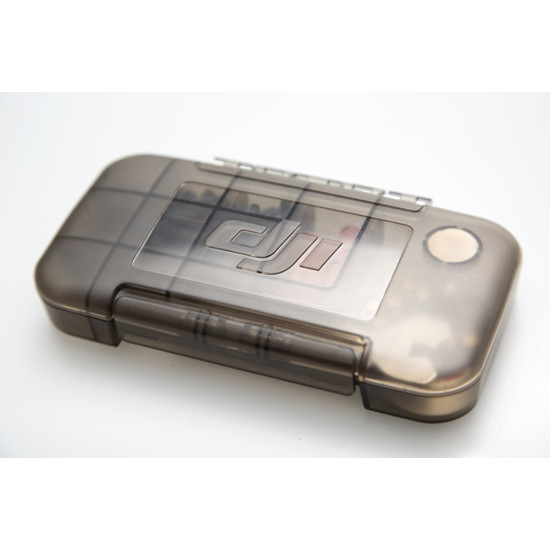

1x accesory box with powerboard
5x pair of props

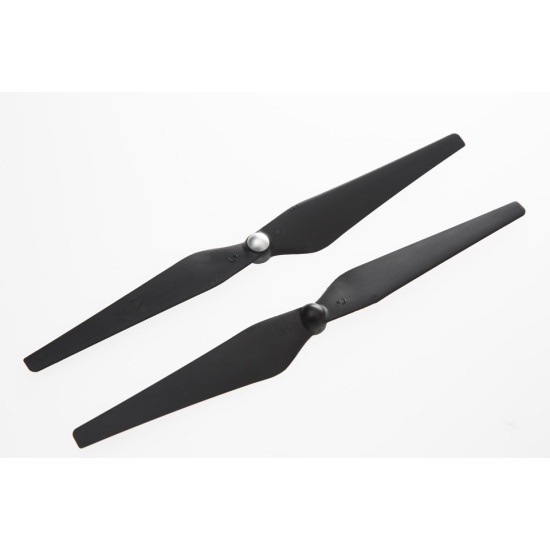

12*4.2" ROTOR

With the state of the art areodynamic efficiency and only nearly half of the inertia product of the normal 12*3.8″ rotor, the 12*4.2″ rotor offers you an outstanding flight experience. The rotors are carefully balanced dynamically, you will never be bothered by jello effect from your airborne rolling shutter camera. The low inertial design enables your flight controller to use a much higher gain value to achieve a higher stability and maneuverability all at once.

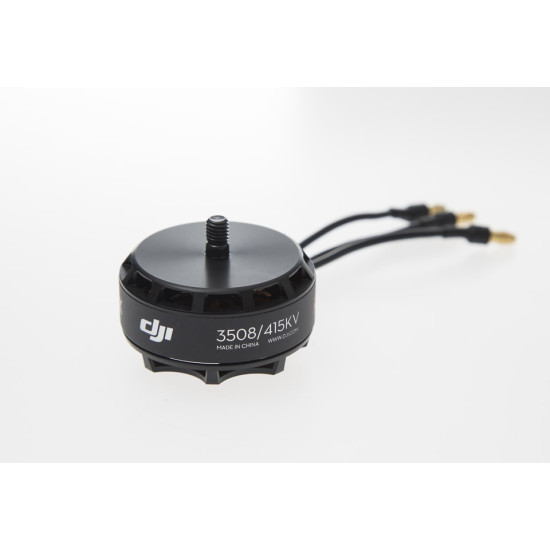

3508 MOTOR

From magnets to steel, from copper wire to bearing we only use the best materials to make the best products. Improved mass production techniques, along with our scientific quality control systems, lowers costs and ensures that our products are more accessible to users. Our new self-tightening mechanism dramatically reduces any chance of loosening rotor or mistakenly installed rotors. Tool-free mounting and dismounting makes storage and transportation much easier.

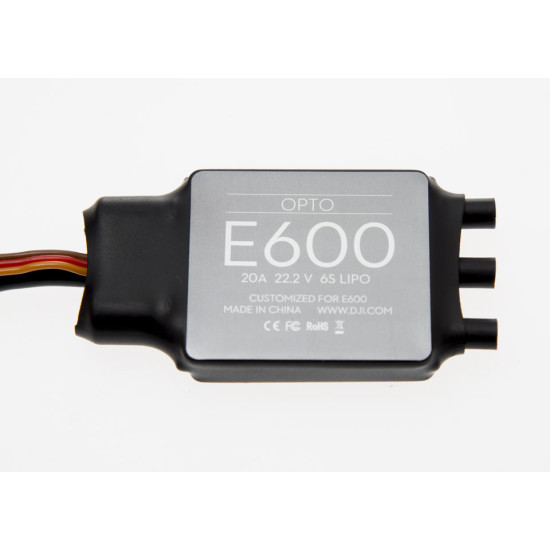

20A ESC

This new and improved ESC along with new highly efficient and quick response algorithms, combine to provide drastic optimization of both motor and rotor parameters, all come together to enhance this propulsion system to utilize an agile thrust which gives the aircraft extra maneuverability and stability in wind and during descending. Also feature an electromagnetic compatibility design with a coaxial-cable, which work together to provide a calm electromagnetic environment for the airborne sensors. Furthermore the 20A ESC together with DJI 3508 motor brings 6S high voltage power system to middle-sized multi-rotors, enable them a much higher electrical efficiency and extended durability.

SPECIFICATIONS

  E300 E600

SYSTEM

Recommended Load 300 g/axis 600 g/axis
Maximum Thrust 600 g/axis 1600 g/axis
Working Temperature -5 °C ~ 40 °C -5 °C ~ 40 °C
Recommended Battery 3S LiPo 6S LiPo
Units Per Package Quad or Hexa Quad or Hexa

ESC

Current 15 A OPTO 20 A OPTO
Signal Frequency 30 Hz~450 Hz 30 Hz~450 Hz
Voltage 11.1 V~14.8 V 14.8 V~25.2 V
Battery 3S~4S LiPo 4S~6S LiPo

MOTOR

Stator Size 22×12 mm 35×8 mm
KV 920 rpm/V 415 rpm/V
Weight 50 g 90 g

ROTOR

Diameter /Thread Pitch 24×11 cm    9.4×4.3 inch 31×11 cm    12×4.2 inch

Write a review

Note: HTML is not translated!
Bad Good
Captcha
479.90€
Ex Tax: 393.36€
  • Stock: Out of stock
  • Model: e6006
