AOS 4" V5 Frame Kit - AOS RC
Based on 0 reviews. - Write a review
82.70€
Ex Tax: 82.70€
  • Stock: Out of stock
  • Model: FQ16700
2070 views
Add to Cart

This product is not available. You can fill out the form below to be notified when the product will be available again.

Buy Now Question
Add to Wish List Compare this Product
Tags: aos , 4" , v5 , frame , kit , - , aos , rc

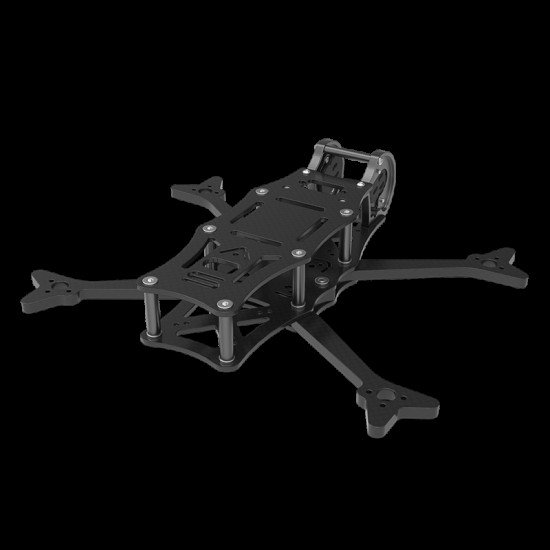

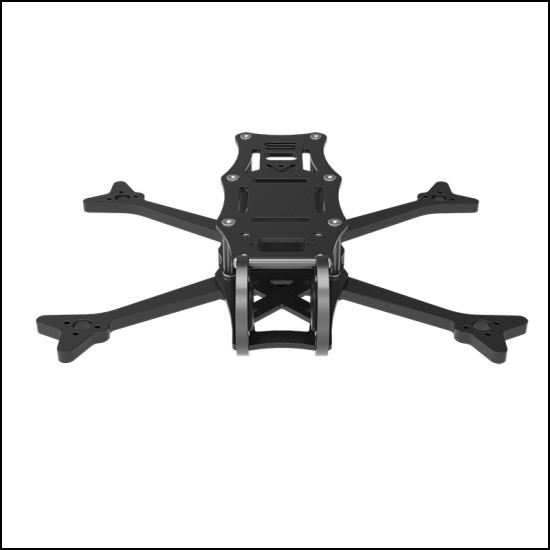

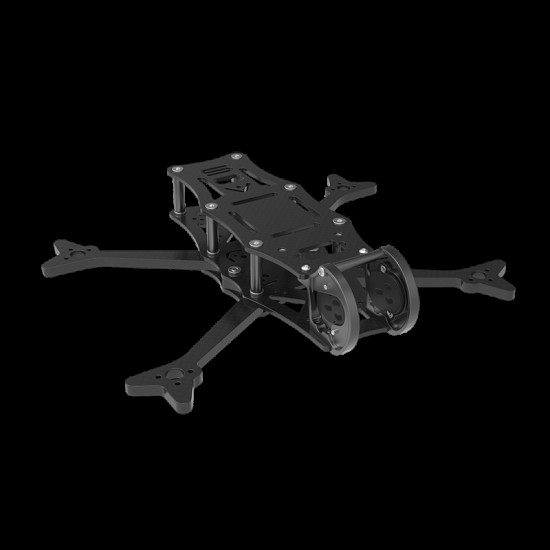

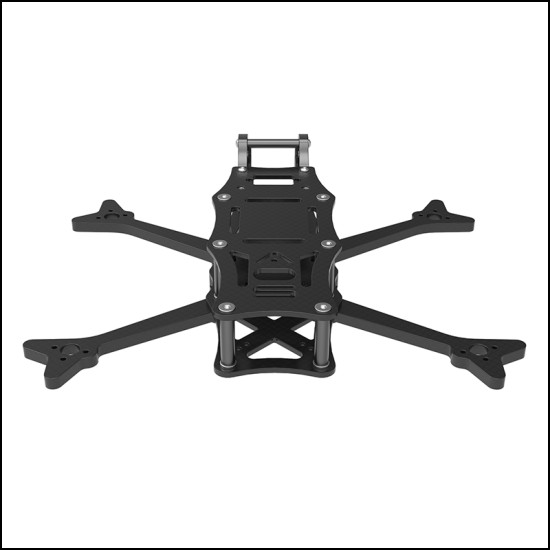

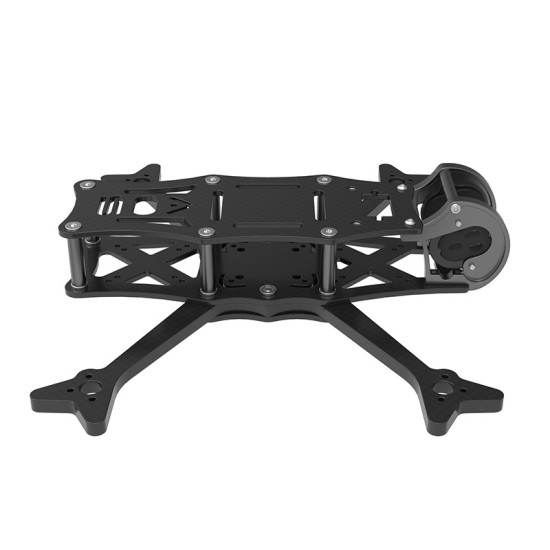

AOS 4 V5



Lose the GoPro and experience an unparalleled mix of speed, power, and agility. Designed with cutting-edge patent pending technology and premium materials, here"s why the AOS 4 V5 is the ultimate choice for drone enthusiasts:



Easy to build


The AOS 4 V5 is designed to be the easiest and most user-friendly FPV frame to build. It"s perfect for beginners with plenty of space, easy access to every stack screw and even fewer parts than the very user-friendly AOS 4 EVO!



Advanced Patent Pending Anti-Vibration Technology


Say goodbye to unwanted vibrations that can hinder your drone"s performance. The AOS 4 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations without compromising filter delay. This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.


Durable and Versatile 7075 Aluminium Camera Cage


The AOS 4 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems including Analog, WS Avatar, HDZero and DJI.



Immersive 155° FPV Experience


Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.


Unrivaled Stack and VTX Compatibility


With three stack positions each supporting 25.5x25.5mm, and 20x20mm mounting the AOS 4 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI O3 Air Unit and HDZero Freestyle V2 VTX), giving you the freedom to customize your drone to your heart"s content.

Reinforced arm and stack mounting


Say goodbye to stripping threads! The arm mounts on the AOS 4 V5 are reinforced with steel press-nuts for easy assembly and enhanced durability.



Flexible Battery Mounting


Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone"s balance and performance based on your flying style and preferences.



Triple Stack Mounting


25.5 x 25.5 mm M2 mounting in front, center and rear
20 x 20 mm M2 mounting in front and rear
20 x 20 mm M3 mounting in center



Find the ultimate combination of speed, power, and agility. Designed to deliver the ultimate in performance, durability, and customization in a smaller form factor, it"s the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what"s possible in the world of freestyle flying. Upgrade to the AOS 4 V5 and take your FPV experience to the next level.

Specs


●    Supports up to 4” Props
●    AOS X-Cell Anti-Vibration Technology
●    Up to three 25.5x25.5 M2, or 20x20 mm stacks (center 20 x 20 mm stack is M3)
●    155° FOV no props in view
●    Fully DJI O3 compatible (soft mount + ND filters, no props in view)
●    Supports 19-20mm cameras (hard or soft mounted)
●    Reinforced 7075 Aluminium Camera Cage
●    Supports Lengthwise or Toilet Tank battery mounting
●    12 - 16mm motor mounting (supports all standard 4” motors)
●    75g including hardware and camera cage
●    27x18mm M2 GoPro Mounting Pattern
●    32mm Rear Standoff Spacing (compatible with all AOS M3 antenna mounts)

Includes

  • 1x Frame kit
  • 2x Lipo straps
  • 1x TPU set (arm protectors, antenna support, XT60 support)

Voir plus
