- Zaloga: Ni na zalogi
- Model: 20487

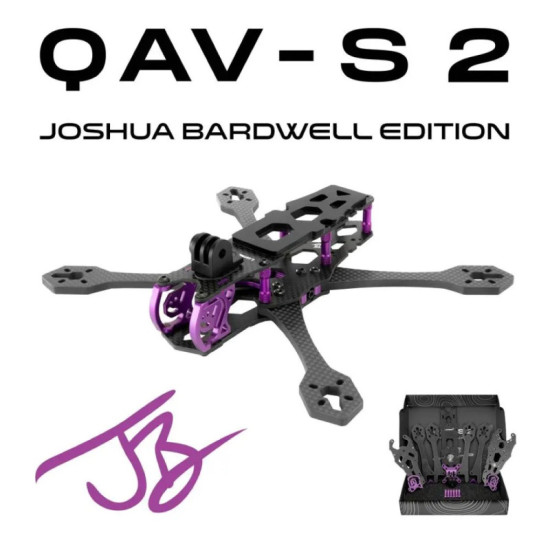

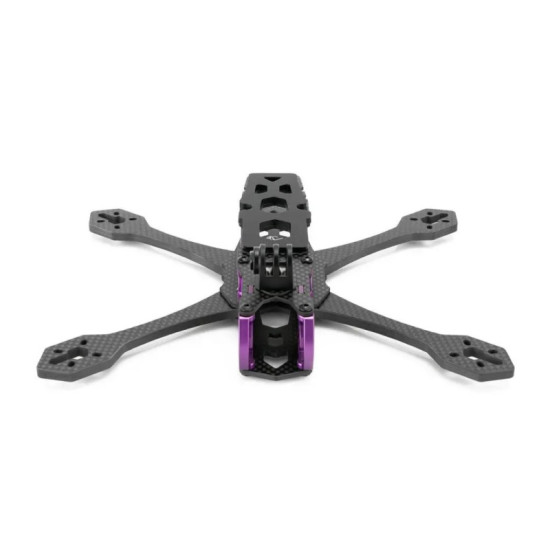

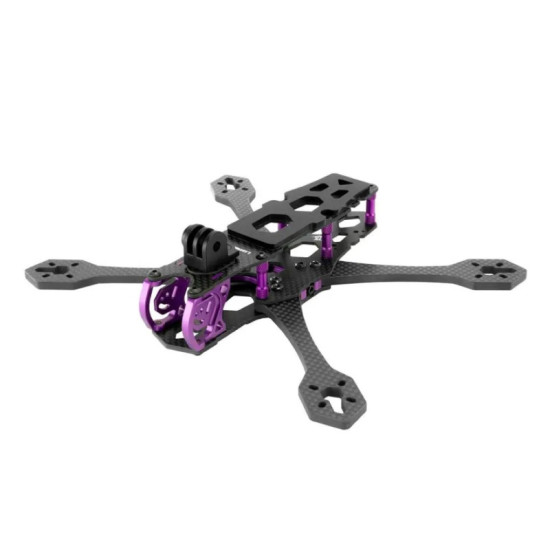

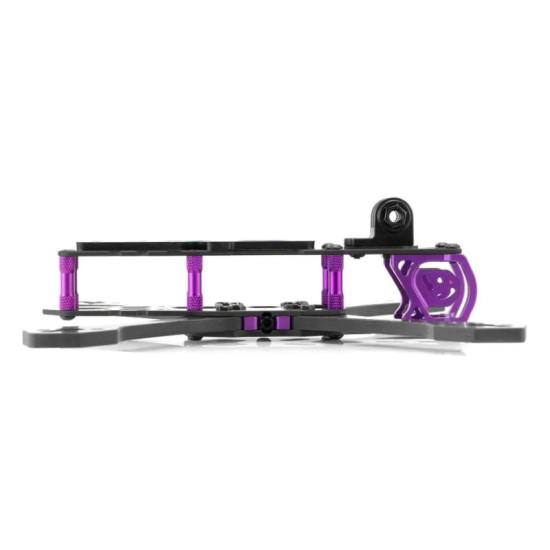

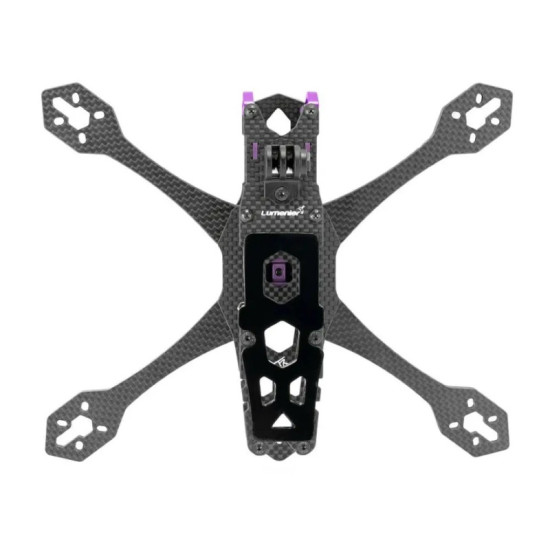

Introducing the Lumenier QAV-S 2 5" Freestyle Quadcopter Frame - Joshua Bardwell Special Edition, a custom-designed drone frame for FPV Freestyle flying! It is feature packed and Bardwell"s favorite frame!
DURABILITY
The QAV-S 2 is a 5-inch freestyle airframe that is ultra-durable, easy to work on, and locked in to perform and provide the best flight feel. The QAV-S 2 has many small details that were well-thought-out - including premium Lumenier carbon fiber with finished and chamfered edges on all the plates, and 7075 colored aluminum standoffs to give the quad a sleek look.
INNOVATIONS

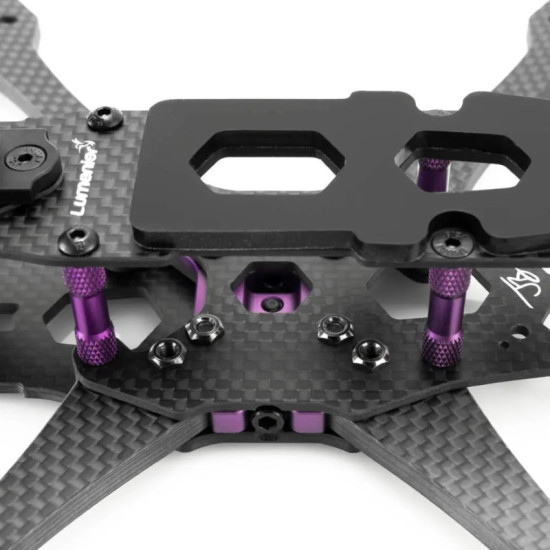

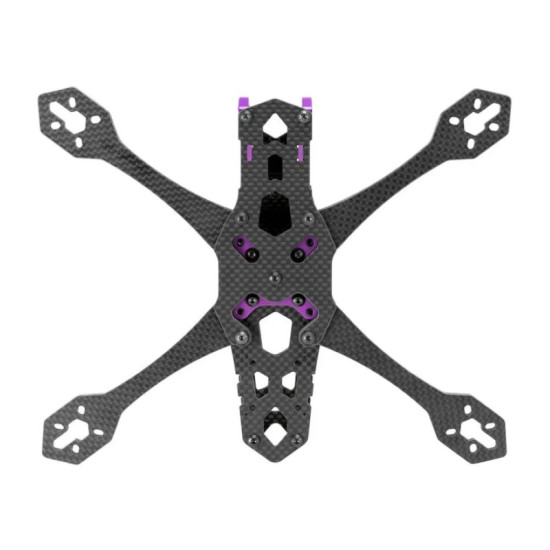

The QAV-S 2 brings several innovations to the table. The first innovation is the arm locking system which includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. This is a convenient feature when maintenance is needed. The second feature is a split bottom plate that gives enough room for a micro camera, while also reducing the rear deck space for components. Lastly, the QAV-S 2 has isolated 20x20 and 30x30 stack mounting in the center (and 20x20 mounting in the rear) that lets you take care of your electronics stack without the need to alter the frame structure and overall build.
X-LOCK MECHANISM
.jpeg)

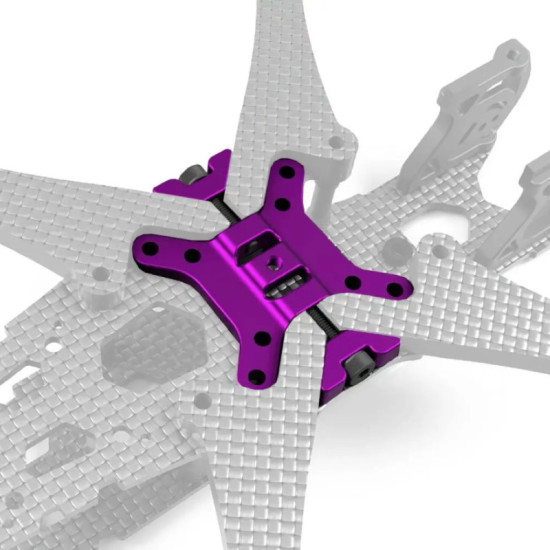

The QAV-S 2 introduces a new lateral X-Lock arm system. This all aluminum arm locking system improves on the QAV-S design in both rigidity and ease-of-use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw for easy transportation.
ALUMINUM FPV CAMERA PLATES
.jpeg)
The new FPV camera mounting solution offers excellent camera protection and support for a range of cameras. The use of a unique interlocking system allows for minimal hardware, and strengthens the front end while staying light weight.
INJECTION MOLDED GOPRO MOUNT
.jpeg)
The QAV-S 2 uses the same GoPro mount pattern used by other Lumenier frames, allowing a durable injection molded GoPro mount to attach with a single screw.
BACKWARD-COMPATIBLE MOUNTING PATTERNS
.jpeg)
For those who still want to use printed GoPro and antenna mounts the QAV-S 2 maintains the same mounting pattern and standoff placement. All mounts for the previous QAV-S* and Bardwell Special Edition frames will fit without modification.
*QAV-S JohnnyFPV Special Edition mounts are not compatible
O3 COMPATIBLE MOUNTS
The rear plate adds 25.5 M1.6 mount holes to allow direct mounting of the O3 air unit to the frame. This frame can also house the Vista/Walksnail/Analog system in rear-mounting orientation. (HDZero works in center-mounting orientation with FC or ESC in the rear.)
Features
- Made in Collaboration with FPV expert Joshua Bardwell
- Frame made of High-Quality Lumenier components
- Backward-compatible mounting patterns
- Aluminum FPV Camera Side Plates
- Injection-Molded GoPro Mount
- O3 Compatible Mounts
- X-Lock Mechanism
Specifications
- Weight: 124g (without HD camera mount, 130g with)
- Standoffs: 7075 Aluminum (Purple)
- Arm: 5mm 3K Carbon Fiber
- Screws: Steel 12.9 grade
- X-Plate: Aluminum
- Frame Size: 220mm
Recommend Parts (Not Included)
- FC: 30.5x30.5 / 20x20 hole size
- Battery: 4-6S 1300-1500mAh
- Camera : Micro(19/20mm) Size
- ESC: 40-60A 4in1 ESC
- Motor : 20xx-22xx

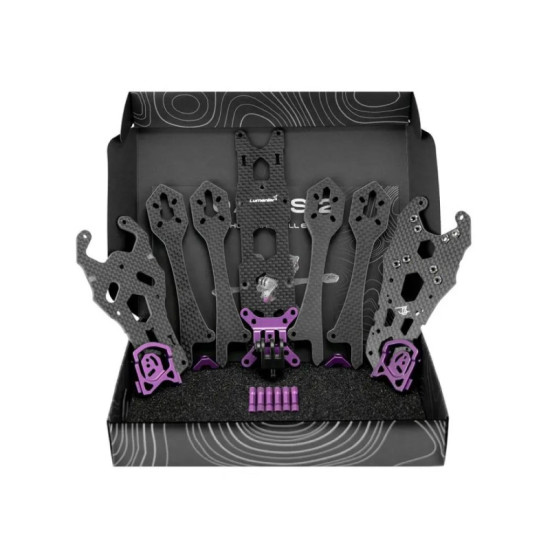

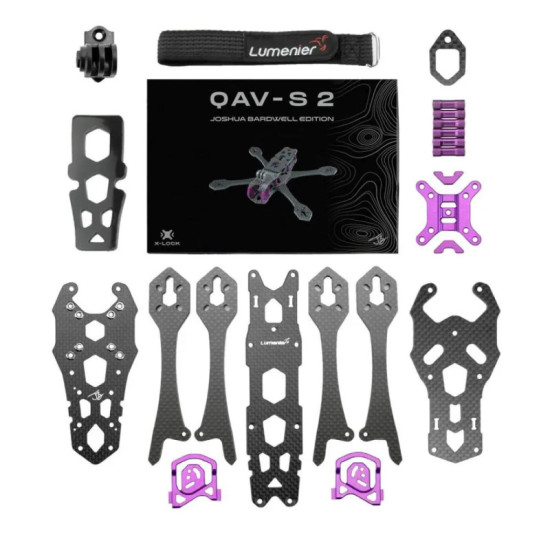

Included
- 1x Bardwell QAV-S 2 Pro Mount Spacer Plate 1mm
- 2x Bardwell QAV-S 2 Aluminum Arm Wedge 5mm
- 1x Bardwell QAV-S 2 Aluminum FC Isolator 5mm
- 1x Bardwell QAV-S 2 Split Plate Front 2.5mm
- 1x Bardwell QAV-S 2 Split Plate Rear 2mm
- 4x Bardwell QAV-S 2 5 Inch Arm 5mm
- 1x Lumenier Battery Strap 16x220mm
- 1x Bardwell QAV-S 2 Top Plate 2mm
- 1x Bardwell QAV-S 2 Battery Pad
- 1x FPV Camera Mount Right
- 1x FPV Camera Mount Left
- 6x Knurled Standoff
- 1x GoPro Mount

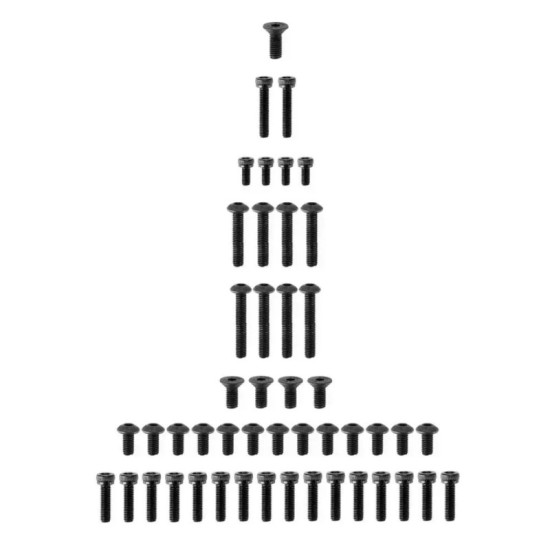

- 1x Hardware Set
