A flight controller dedicated to Flying Wings, the Matek H743 WING V2! The latter uses IMU ICM42688-P(V3)+ICM42605 instead of MPU6000(V2)+ICM42605

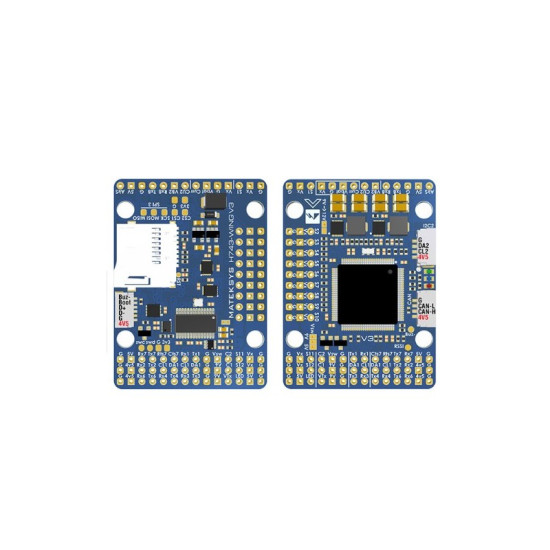

FC Specifications

  • MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
  • IMU ICM42688-P(V3)+ICM42605
  • Baro: Infineon DPS310 (I2C2)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card slot (SDIO)
  • 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 13x PWM outputs(including “LED” pad)
  • 2x I2C
  • 1x CAN
  • 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 1x SPI3 breakout
  • USB/Beep Extender with Type-C(USB2.0)
  • Dual Camera Inputs switch
  • 5V/9V(12V) for Camera/VTX power switch
  • High-precision Current Sense (90A continuous, 220A peak)
  • Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)
  • ADC VB2 voltage divider: 1K:20K
  • ADC AirSpeed voltage divider: 20K:20K
  • Static power 160mA@5V
  • Color : Blue

Features

Firmware

  • ArduPilot(ChiBiOS): MATEKH743
  • INAV: MATEKH743

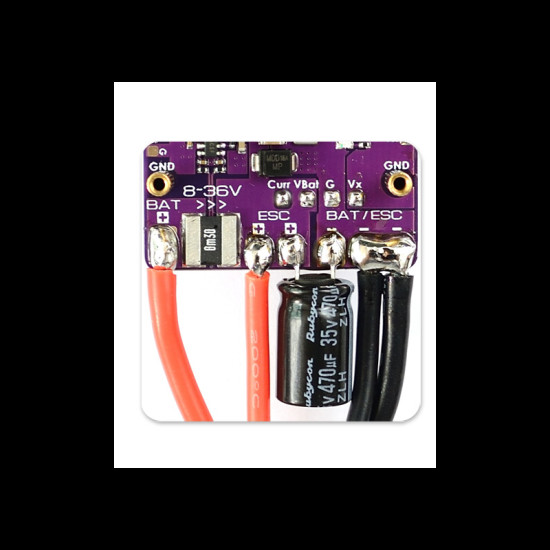

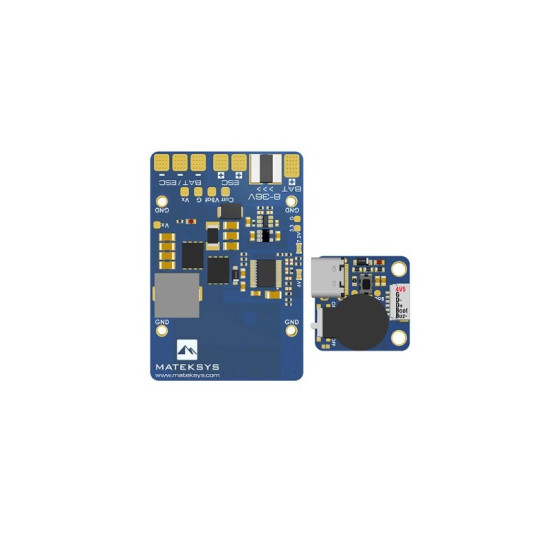

PDB

  • Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
  • 2x ESC power pads
  • Current Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)
  • Sense resistor: 90A continuous, 220A peak.

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Output 5.15  +/- 0.1V DC
  • Continuous current 2 Amps,  3A Peak

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current 2 Amps,  3A Peak
12V option with Jumper pad

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current 8 Amps,  10A Peak

BEC 3.3V output

  • Linear Regulator
  • Continuous current: 200mA

Included

  • 1x Matek Flight Controller H743-WING V3
