47.46€
Ex Tax: 47.46€
  • Stock: In Stock in 3 days
  • Model: HP0157.RX-GR-01
3951 views
Tags: gr-01 , elrs , 2.4g , receiver , for , dji , rs , camera , gimbals , by , radiomaster

Take control of your RS gimbal and elevate your cinematic game with the GR-01 from RadioMaster.

The GR-01 ExpressLRS 2.4G receiver was developed for Cinelifter setups that use the DJI RS2 and RS3 Pro gimbal platforms.

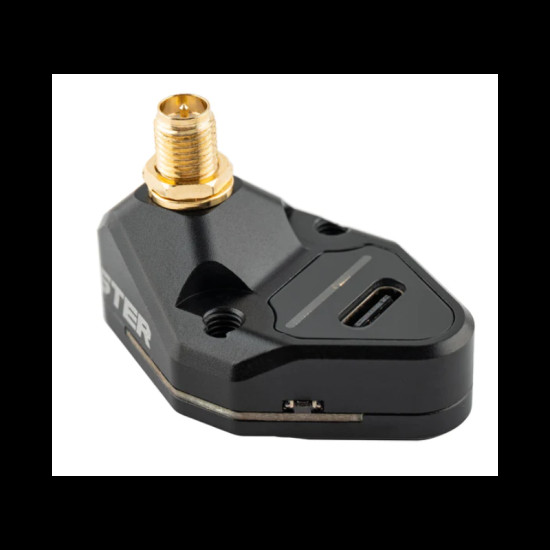

The GR-01 features a sturdy aluminum case and built-in USB-C interface for simple firmware updates.

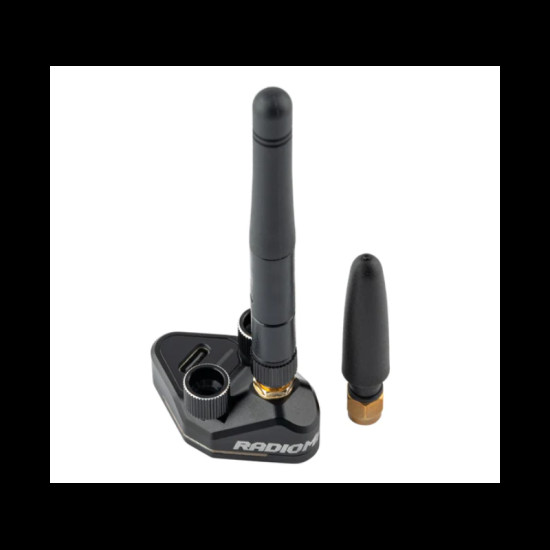

Two antennas are included to best suit your configuration.

How to bind

Quickly power the Rx 3 times using the USB-C port.

The green LED flashes twice when the Rx is in link mode.

Enter the ExpressLRS LUA script on your radio, press [BIND]. The LED will turn solid green “ON” if the link is successful.

You can also use the ExpressLRS linking phrase method for linking.

After successful pairing procedure, make sure the output protocol is “DJI RS Pro”.

Return to the main menu and enter ExpressLRS LUA again. Go to "Other Devices" at the bottom of the screen, select "RMRP1" and make sure "DJI RS Pro" is selected.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

  • Frequency: ISM2400MHz (2.4GHz)
  • MCU: ESP8285
  • RF Chip: SEMTECH SX1281
  • Antenna: 2.4GHz Omni
  • Frequency Range: 2400 MHz to 2480 MHz
  • Firmware Version: ExpressLRS v3.3.0
  • FW Target: RadioMaster RP1/2 2400 RX
  • Output protocol: DJI RS Pro
  • Firmware flash method: UART or Wifi

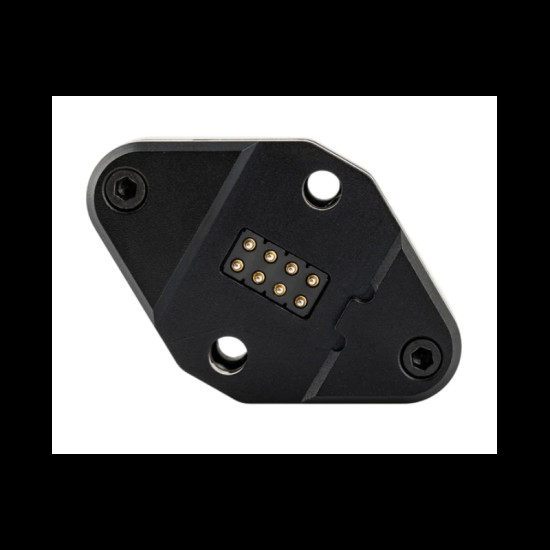

  • Connector Type: NATO Port
  • Voltage: 5V

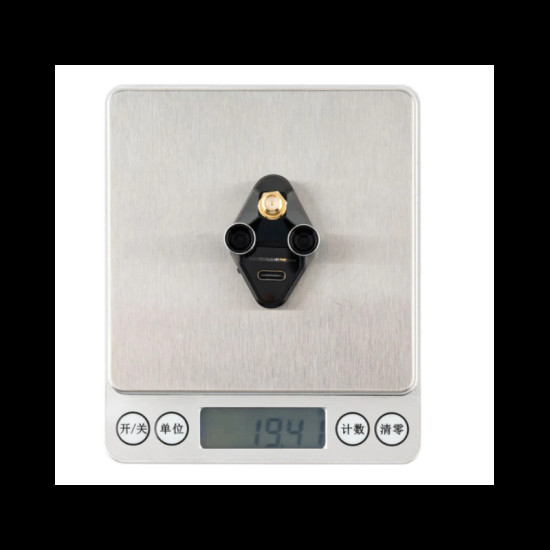

  • Weight: 18.80g(without antenna)

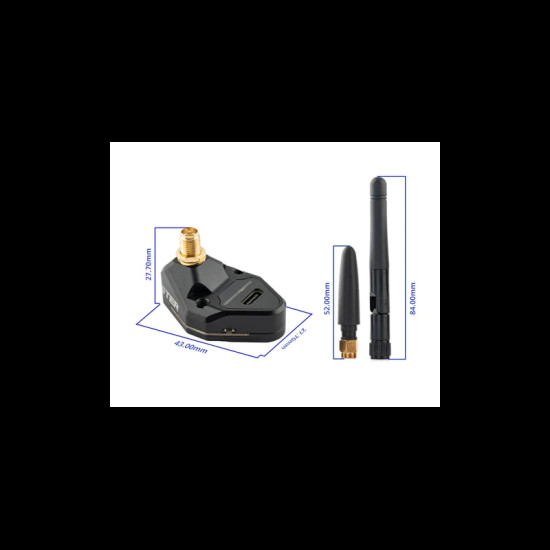

  • Dimension: 43.00×27.70×27.50mm

Bullet points

  • Compatible with the DJI RS2 and RS3 Pro camera gimbals

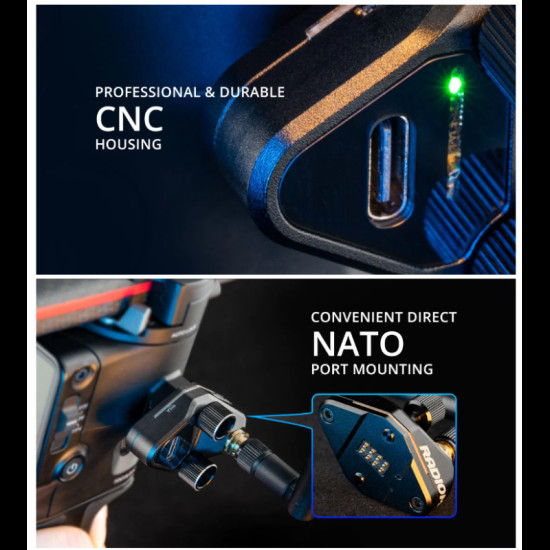

  • Professional & durable CNC housing

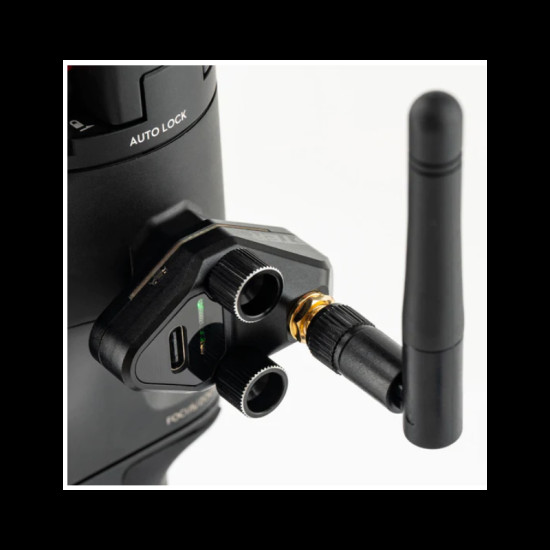

  • Convenient direct NATO port mounting

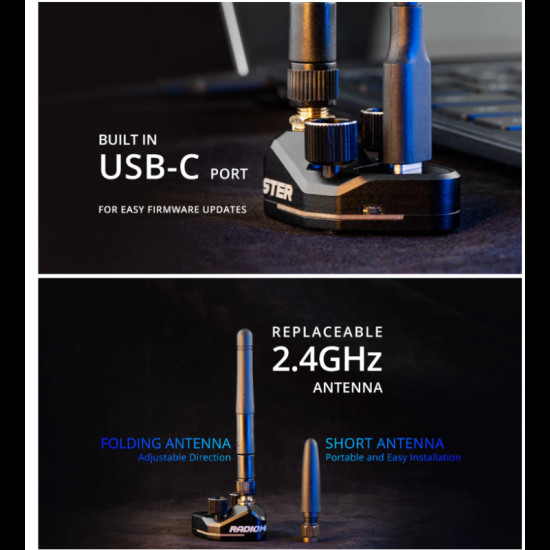

  • Built in USB-C port for easy firmware updates
  • Replaceable 2.4Ghz antennas

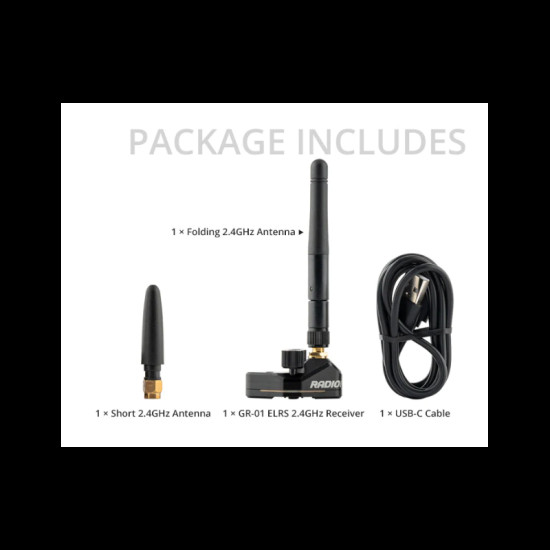

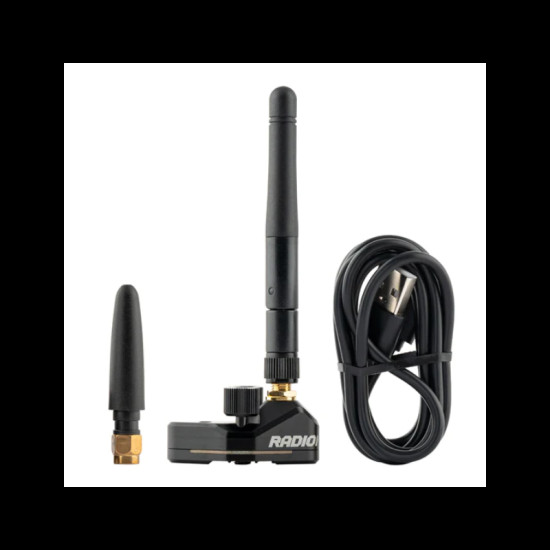

Included

  • 1x GR-01 ExpressLRS 2.4GHz Receiver
  • 1x USB-C Cable
  • 1x Short 2.4GHz Antenna
  • 1x Folding 2.4GHz Antenna
