Navi-Ctrl V2,0

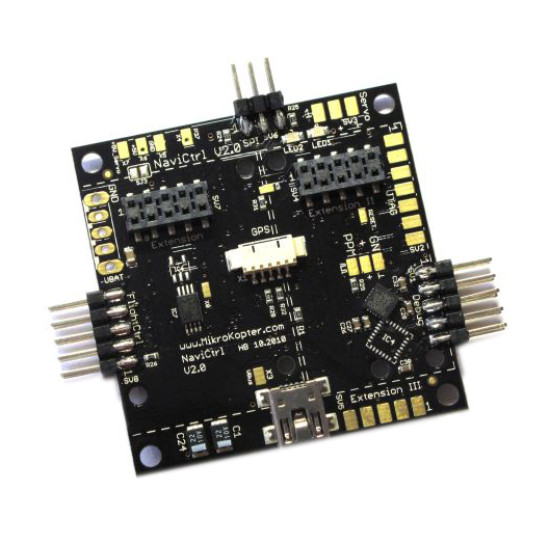

This is a Navi-Ctrl kit with ARM9 microcontroller, micro-SD card socket and integrated compass.

In together with a MKGPS the navigational capabilities of the Mikrokopter are expanded. (e.g. waypoint navigation, position hold ,...)
The board is already SMD preassembled, there are only a few components left to solder assemble (like connectors, big capacitor).


The NaviCtrl kit is tested and programmed. (including the bootloader)
An update of the firmware is possible via a MKUSB or Sercon.

A MKUSB / SerCon is required for the parameterization / update.

Scope of delivery

• 1 NaviCtrl (SMD-preassembled)
• Other components: ribbon cable, crimp connectors for male connector (10pin, 6pin)
• MKGPS NOT included
• some parts still have to be soldered
• Option: (2nd 5V regulator) is not included

Hints

• This is a kit. The SMD parts are pre-assembled, but there are still some parts left to solder for operation.
• The max. GPS operating radius is approximately 250m around the starting point
• Only for private, non-commercial use
• Please note our software license before using.
