LowCULT Frame Kit 6" By CultureFPV



Discover the CULT range of Culture FPV, the first 100% open source French frame. The CULT frame is accessible to all thanks to its very advantageous price.

The LowCULT has slightly less worked finishes compared to the HighCULT in order to limit the price, its screws are standard and it does not have chamfers.

Here is the 6inch version with a DeadCat geometry.

LOW / HIGH CULT comparison :

Specifications

  • Size: 222mm Squished X
  • Carbon: T300 Full layer Plain Mat
  • Internal height: 19.8mm
  • Motor mounting: 16x16, 16x19mm
  • Camera distance: 20mm (DJI) or micro (19mm) with adapter
  • Center stack center distance : 20x20mm / 25x25mm
  • Weight: 112g (only frame)
  • Compatibility: Vista, HDZero and Analog

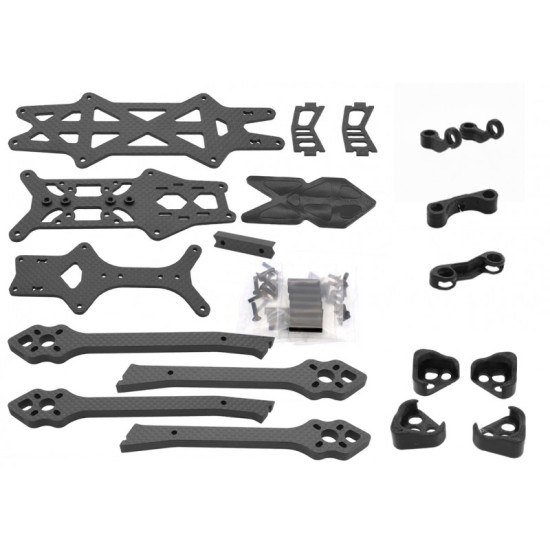

Included

  • 1x Top plate 2.5mm
  • 1x Middle plate 2mm
  • 1x Bottom plate 2.5mm
  • 1x Beam plate 6mm
  • 4x Arm 6mm
  • 2x Camera plate 1.5mm
  • 1x Lipo pad
  • 1x TPU set
  • 6x Spacer M3*20mm (Ø5mm)
  • 2x Spacer M3*28mm (Ø5mm)
  • 8x M3*8mm screw
  • 4x M3*10mm screw
  • 4x M3*12mm screw
  • 4x M3*14mm screw
  • 4x Pressnut M3*4.5mm (there are several sizes)
  • 4x Ultra-light arm protection
  • 1x Vista TPU Antenna Mount
  • 1x TPU pigtail mount
  • 1x immortal T antenna mount on TPU spacer
  • 1x TPU front bumper
  • 1x Strap
Voir plus

Write a review

Note: HTML is not translated!
Bad Good
Captcha
214.90€
Ex Tax: 176.15€
  • Stock: Out of stock
  • Model: LOWCULT-FRAME-6
Tags: LowCULT , Frame , Kit , 6" , By , CultureFPV
